Filler for wine, juices, kombucha, cooking oil, etc. with a capper for aluminum caps

Producer: Rizzolio

Product code: SAV4-RLVT4-RLV1

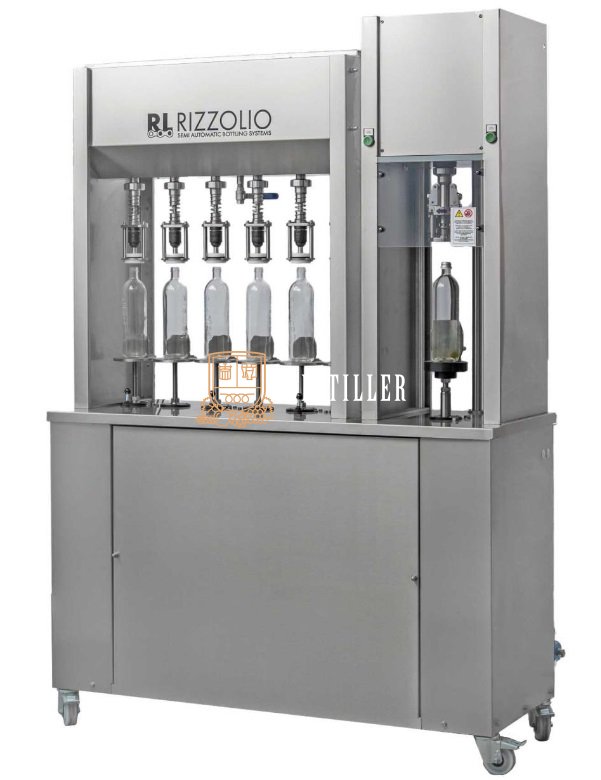

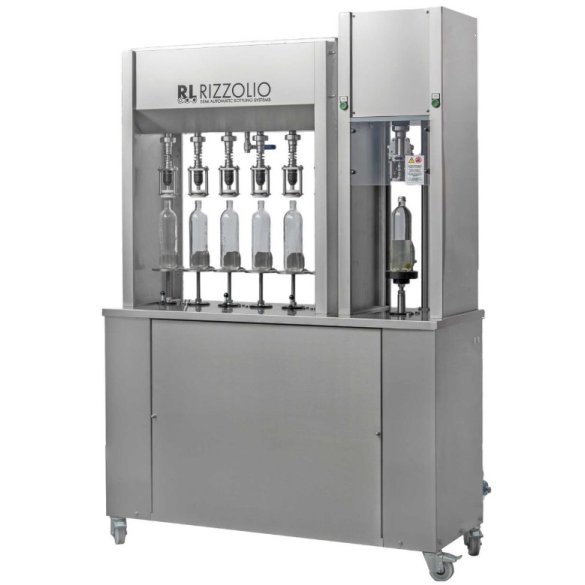

Gravity filler with 4 or 6 nozzles with a capper for pilfer proof aluminum caps. The device is intended for bottling wine, juices, edible oil, see full description

Print product specification

Full description

DESCRIPTION

Gravity filler with 4 or 6 nozzles with a capper for pilfer proof aluminum caps. The device is intended for bottling wine, juices, edible oil, kombucha, etc. The device can be equipped with a bottle rinser for rinsing bottles in a closed system.

Technical parameters:

Efficiency 200/600 BPH depending on the operator
Work table height - about 750 cm
Maximum bottle size Ø - 120 mm, height - 350 mm
Supply voltage 380 V three phase + N
Electrical consumption - 0.75 Kw/h
Compressed air consumption - 800 l/m 7 bar
Product connection type - TRICLAMP Cross-section 51 mm (other types on request)
Main compressed air connection - John Guest 8 mm or female 3/8” gas
Maximum washing temperature - 60°c (85°c on request)
Buffer tank material - INOX 304 (INOX 316 on request)
