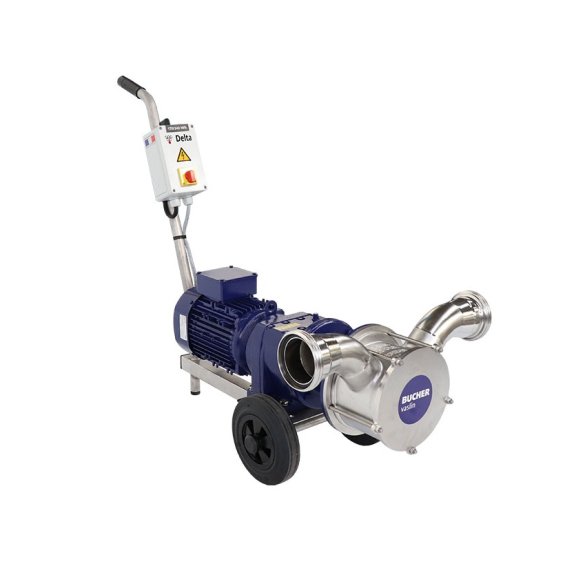

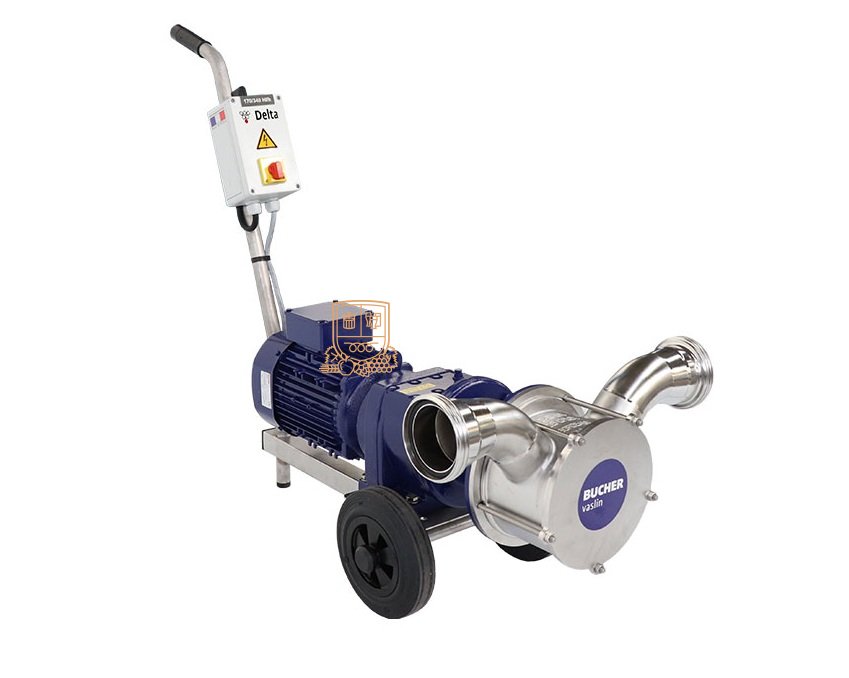

Wine pump Delta FLEX 35/70

Availability: 30 days

Delta FLEX 35/70 pump. Power: 1.1 kW. Flexible neoprene impeller. Reduced rotation speed: guaranteed gentle pressing of wine and must. Two-speed see full description

Gross price: 3 149 €

Net price: 2 560 €

Print product specification

Full description
Files to download

DESCRIPTION

Delta FLEX 35/70 pump. Power: 1.1 kW. Flexible neoprene impeller. Reduced rotation speed: guaranteed gentle pressing of wine and must. Two-speed pump: 35 - 70 hl/h. DIN DN 50.

Additional equipment, available at extra cost:

Bypass valve
Electronic pressure switch
Fittings
Radio controls
Pressure regulator

Technical data	Flex 35/70	Flex 50/100	Flex 70/140	Flex 90/180	Flex 110/220	Flex 140/280	Flex 170/340	Flex 300/600	FLEX 5/140 Var Elec	FLEX 15/260 Var Elec	FLEX 25/400 Var Elec	FLEX 50/700 Var Elec
Wine capacity (hl/h)	35 to 70	50 to 100	70 to 140	90 to 180	110 to 220	140 to 280	170 to 340	300 to 600	5 to 140	15 to 240	15 to 260	50 to 700
Length (mm)	1018	1018	1043	1043	1043	1130	1127	1018	1020	1134	1127	1208
Width (mm)	370	370	370	370	370	370	370	440	376	346	346	440
Height (mm)	720.5	720.5	720.5	720.5	720.5	720.5	720.5	920	721	826	826	910

Files to download

Delta FLEX pump.pdf
