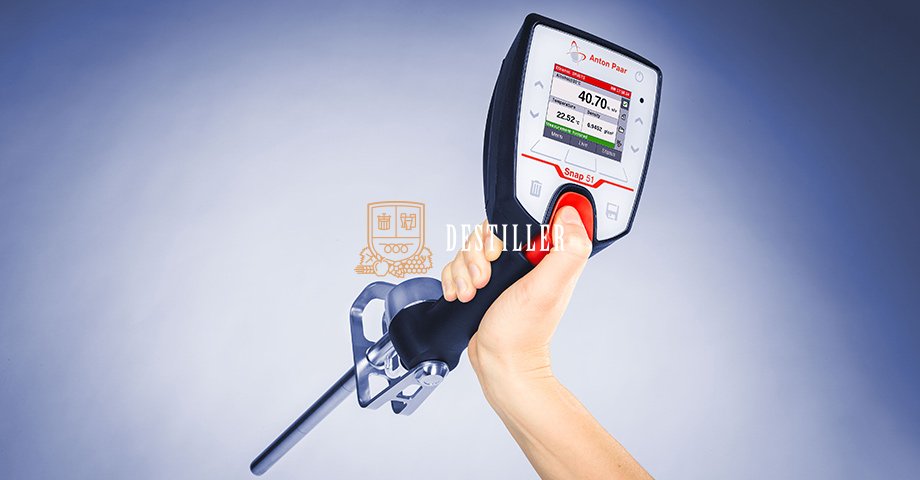

The Snap 41 is a digital alcohol hydrometer that measures spirits in the production facility, providing excellent accuracy. One instrument replaces all glass hydrometers used in the distillery, ensuring that every bottle always contains the contents described on the bottle. The Snap 41 measures the alcohol content of all unsweetened spirits of any strength, throughout the production process. This portable instrument can be used directly at the spirit container, providing results in seconds. This robust, long-lasting instrument uses state-of-the-art technology, allowing the Snap series to measure the highest quality spirits.
| Snap 41 | Snap 51 | |
| Patent protection | Patent AT516421 (B1), EP3015847 (B1) | – |
| Measurement range | Alcohol: 0% to 100% vol Temperature: 5°C to 30°C (41°F to 86°F) (automatic temperature correction) |
Alcohol: 0% to 100% by volume Temperature: 0°C to 40°C (32°F to 104°F) (automatic temperature correction) |
| Accuracy | Alcohol: 0.2% vol. Temperature: 0.2°C (0.4°F) |
Alcohol: 0.1% vol. Temperature: 0.1°C (0.2°F) |
| Repeatability (standard deviation)* | Alcohol: 0.1% vol. Temperature: 0.1°C (0.2°F) |
Alcohol: 0.05% vol. Temperature: 0.05°C (0.1°F) |
| Reproducibility (standard deviation)* | Alcohol: 0.15% vol. | Alcohol: 0.07% vol. |
| Resolution | Alcohol: 0.01% vol. Temperature: 0.1°C (0.1°F) |
Alcohol: 0.01% vol. Temperature: 0.01°C (0.01°F) |
| Ambient temperature | From 0°C to 35°C (from 32°F to 95°F) | Od -10°C do +50°C (14°F do 122°F) |
| Principle of measurement | Oscillating U-tube technology | Oscillating U-tube technology |
| Supported measurement values | Alcohol concentration in % by volume at 20°C or 15°C, °Proof | Alcohol concentration in % vol. (at 20°C or at 15°C) or °Proof Density Sugar/extract concentration in °Brix or °Plato 10 individually programmable measuring units |
| Internal memory | – | 1024 measurement results, 250 sample identifiers, 30 measurement methods |
| Power supply | Three 1.5V LR06 AA alkaline batteries | Three 1.5V LR06 AA alkaline batteries |
| Sample volume | 2 ml | 2 ml |
| Dimensions | 245 mm x 103 mm x 126 mm (9,6 in x 4 in x 5 in) | 468 mm x 108 mm x 119 mm (18,4 in x 4,3 in x 4,7 in) |
| Libra | 660 g | 860 g |
| Interfaces | Bluetooth® (for software updates only) | Bluetooth® (data transfer to computer or printer), RFID (sample identifier) |
| Degree of protection | IP54 | IP54 |
| Optional accessories available | Wrist strap, rubber control panel cover, carrying case | Wrist strap, rubber control panel cover, Bluetooth® portable printer, Bluetooth® USB adapter |
| Scope of delivery | Portable alcohol meter, filling tube, syringe sample insertion adapter, syringes, rubber measuring cell cover, three batteries, Allen key, instruction manual | Portable alcohol meter, carrying case, three batteries, Allen key, silicone tube, user manual |
* in accordance with ISO 5725
