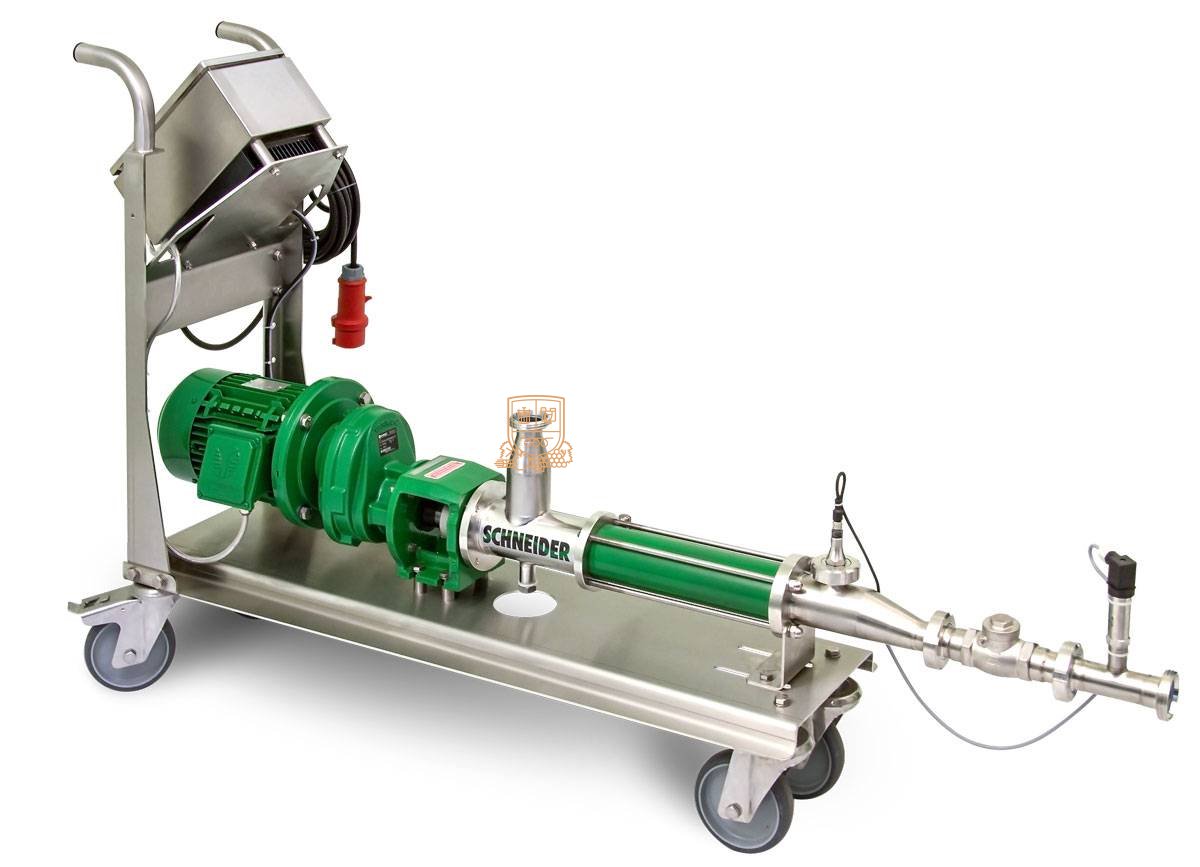

Screw pump with Vario Control VC pumping pressure regulation system
Vario Control – Intelligent pump pressure control. Excellent filtration thanks to excellent pressure control. Precise and uniform filtration
see full description
DESCRIPTION
Vario Control – Intelligent pump pressure control. Excellent filtration thanks to excellent pressure control. Precise and uniform filtration plays a key role in wine and food processing. Uncontrolled pressure fluctuations can hinder filtration, lead to quality losses, or unnecessarily prolong the process. This is where the SCHNEIDER Vario Control (VC) system, available for eccentric screw pumps, comes in. Pressure control ensures automatic, linear feed, dynamic adjustment of pump operation, and pressure changes, enabling optimal pumping – efficient yet gentle.
Available pump models:
- VC 40 – Capacity: 500-4000 l/h, Motor: 2.2 kW three-phase.
- VC 80 – Capacity: 1000-8000 l/h, Motor: 3.0 kW three-phase
- VC 120 – Capacity: 1200-12000 l/h, Motor: 4.0 kW three-phase
- VC 180 – Capacity: 1400-20000 l/h, Motor: 5.5 kW three-phase
- VC 250 – Capacity: 2500-25000 l/h, Motor: 7.5 kW three-phase
