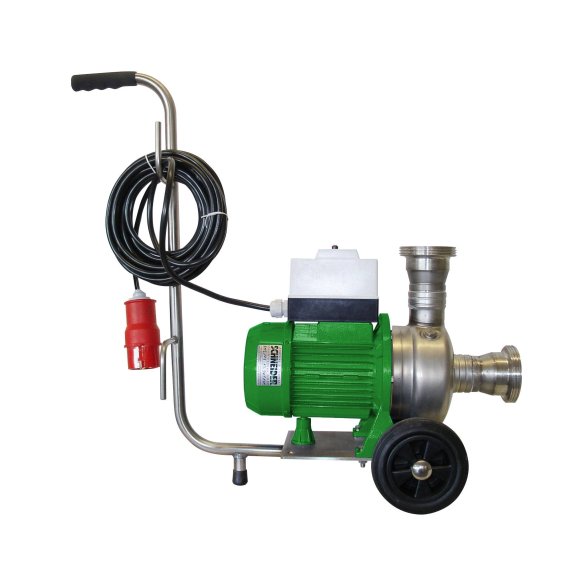

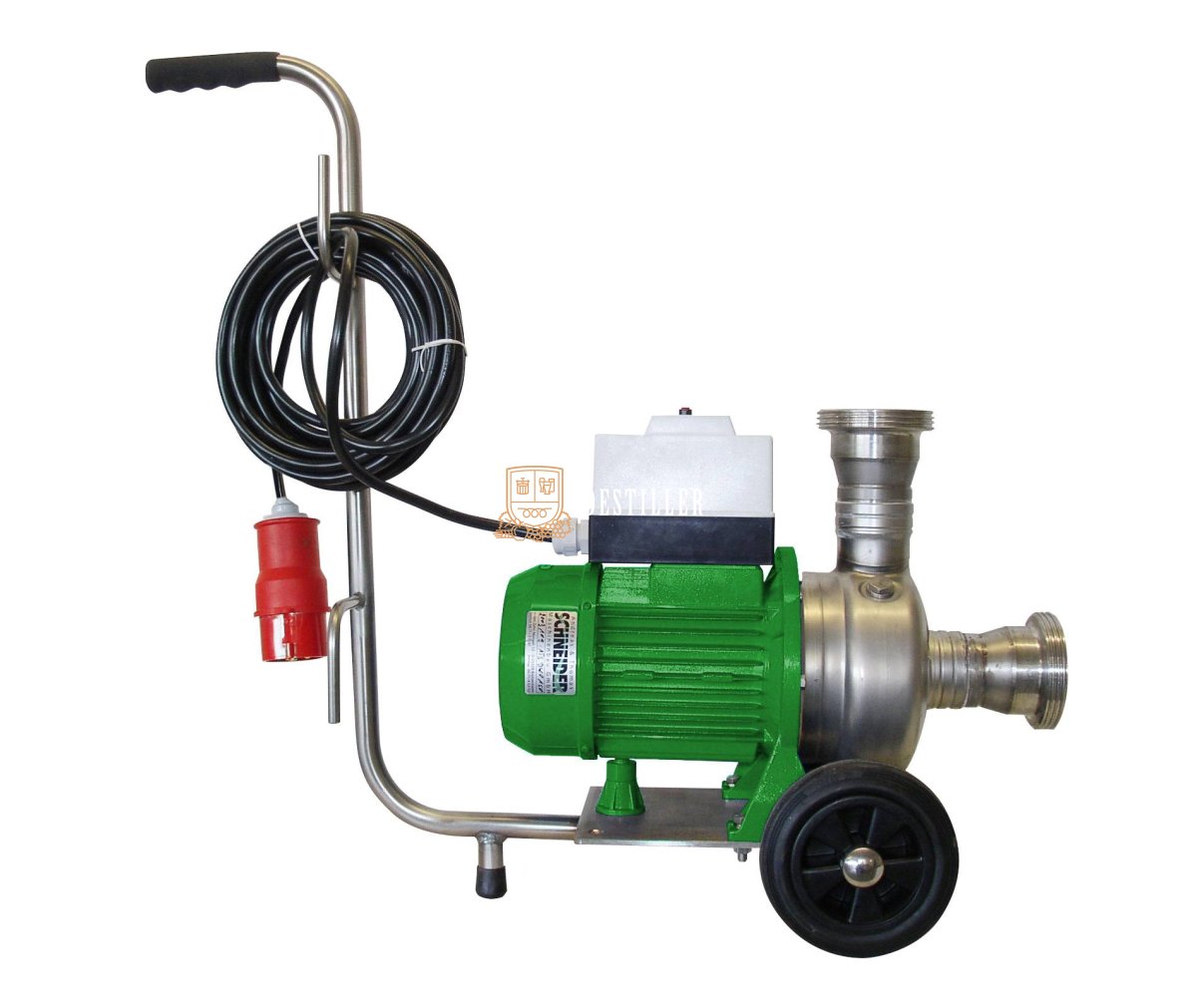

Pump for hot mashes and fruit pulps, DWO
The DWO pump was specifically designed for pumping hot mashes and fruit pulps. The large rotor diameter significantly reduces pump clogging. The
see full description
DESCRIPTION
The DWO pump was specifically designed for pumping hot mashes and fruit pulps. The large rotor diameter significantly reduces pump clogging. The DWO pump has large power reserves, and the discharge hose can be reduced to DN40 or DN50. The pump is available in two versions: DWO 150 and DWO 200.
Basic technical data:
- Pump housing: 1.4301 – DN65 connection thread
- Mechanical seal
- Maximum temperature: T = 110°C
- With trolley
- Motor: 1.1 kW, 230/400 V, 50 Hz, IP 55
- 10-meter cable
Technical data
| ATS – DWO 150 | 20 m³ – 0,8 bara | 1,1 kW |
| ATS – DWO 200 | 30 m³ – 0,8 bara | 1,5 kW |
From this manufacturer
Eccentric screw pump driven by a continuously variable gear. The pump speed and thus the flow rate of the pump can be precisely adjusted by turning the knob. This increases the service life of the
A steam generator for particularly demanding requirements.
Compact, efficient, and economical. All parts in contact with water and steam are made of stainless steel. Very fast heat-up time. Low

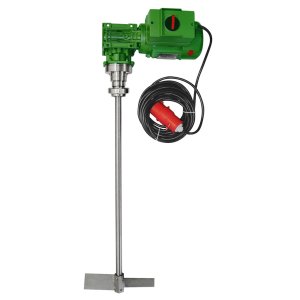

Applications of the ARV Series Mixers
