Destiller

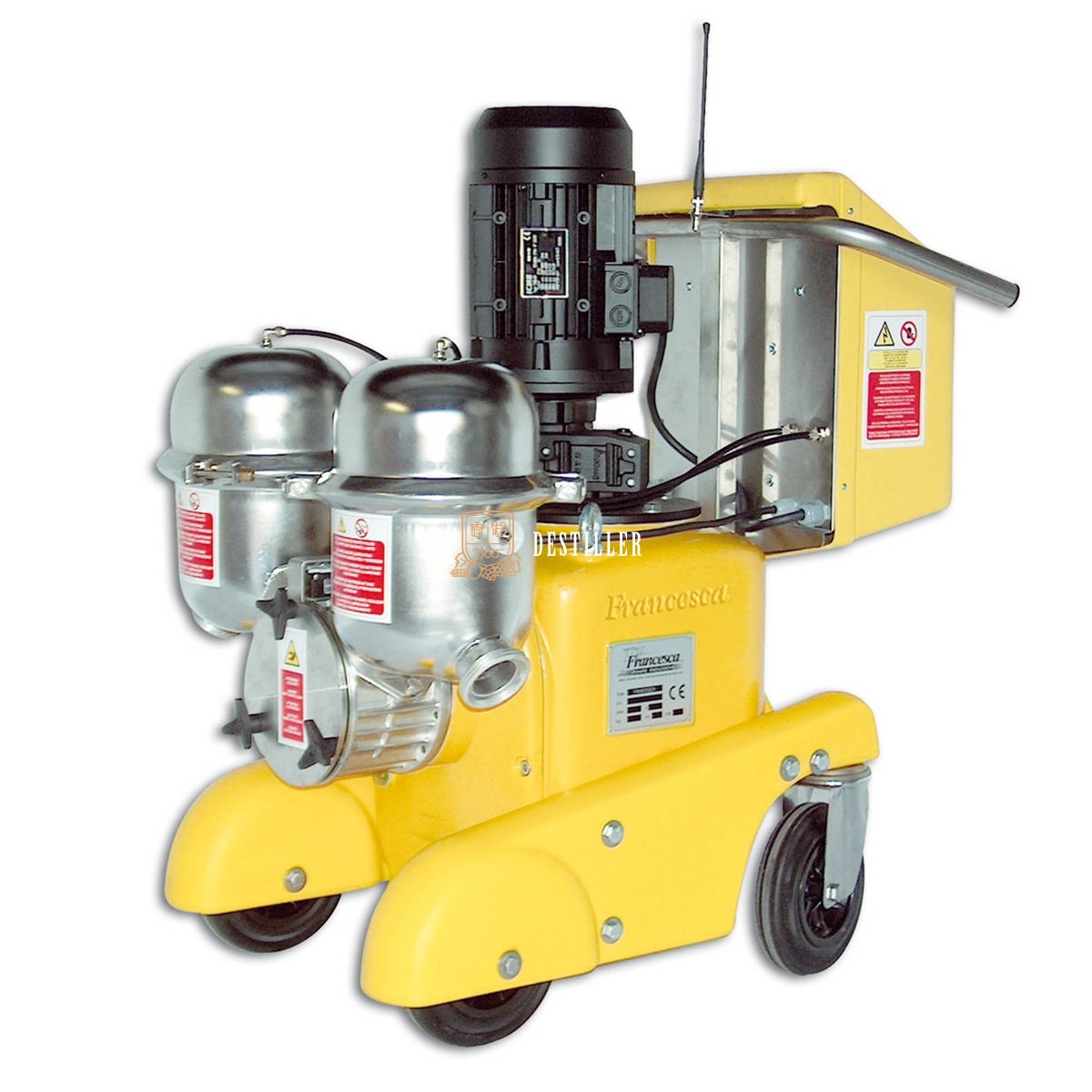

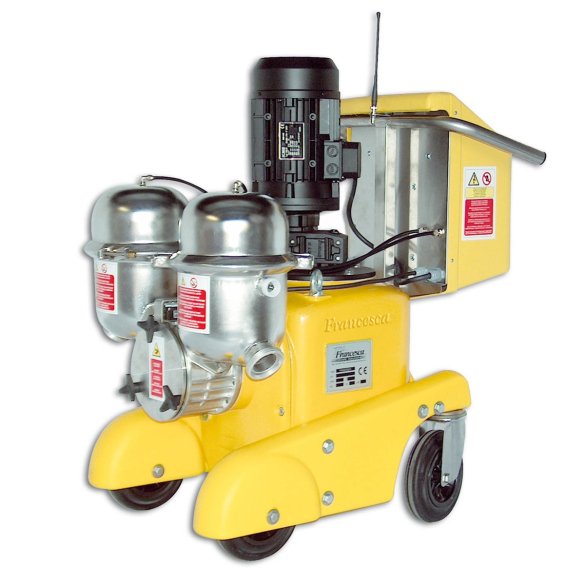

Francesca pump

Producer:
Patented oenological pump with rubber lobes, self-priming, dry pump up to -8.5 meters, with manual and automatic flow rate adjustment. Parts in see full description
DESCRIPTION

Patented oenological pump with rubber lobes, self-priming, dry pump up to -8.5 meters, with manual and automatic flow rate adjustment. Parts in contact with the liquid are made entirely of AISI 304 and 316 stainless steel. Perfect for use in wineries: transporting destemmed grapes, musts, and wine, pumping, filtration, bottling, and heat exchanger passage. Optimal for filling and emptying barrels. Easily washable and sterilizable, it allows for precise, complete inspection of parts in contact with the product. Very low impeller rotation speed.

Standard pump equipment (included in the price):

  • Multifunctional remote control with an open-air range of at least 80 m
  • Liquid sensor with timer
  • Pressure and vacuum control
  • INTERNAL FLOWMETER tolerance of +/- 1% over the entire flow range
  • Over-pumping function
  • Drum filling and emptying function
  • Pump performance self-diagnosis
  • QR code for online instructions

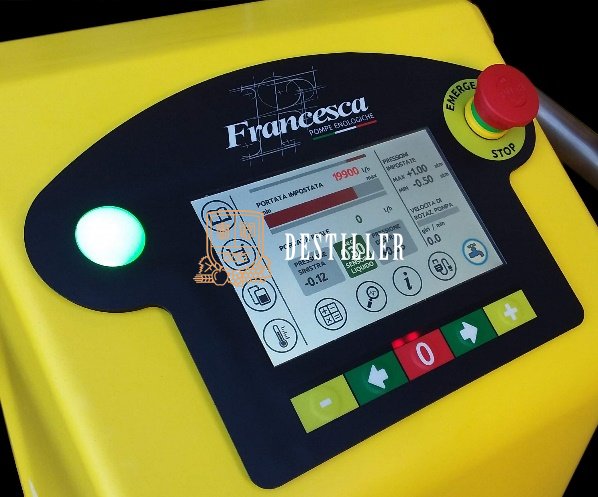

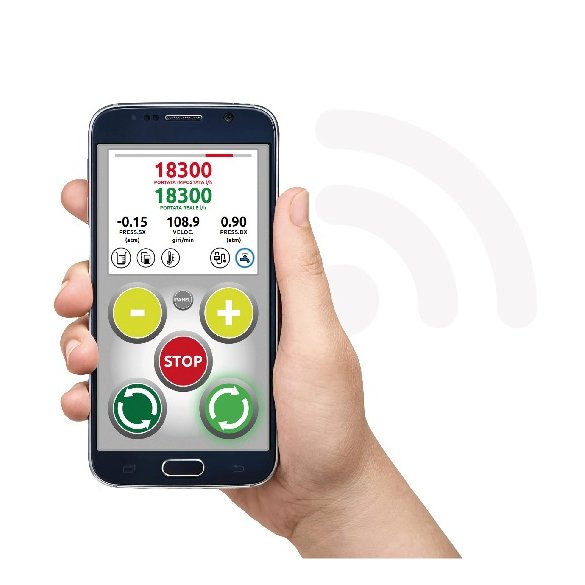

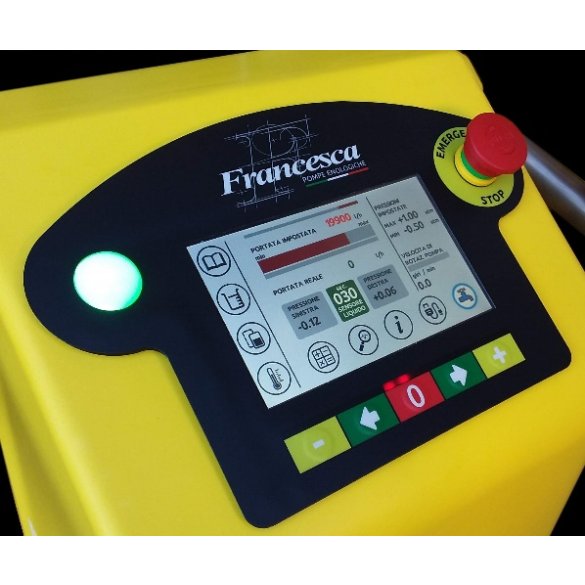

  • Wi-Fi activation on the touch panel using the FranciApp app



Model Flow rate (l/h) Recommended min. fitting Max delivered pressure Rotation speed (rpm) Motor
F03 1500-9000 ø 50 3.0 bar 19-112 2.2 kw
F03V 400-9000 ø 50 3.0 bar 4-112 2.2 kw
F04 4000-17000 ø 50 3.0 bar 50-216 3.0 kw
F04V 550-14000 ø 50 3.0 bar 7-173 3.0 kw
F05 4000-20000 ø 60 3.0 bar 47-252 4.0 kw
F05V 900-20000 ø 60 3.0 bar 11-252 4.0 kw
F08 5000-26000 ø 80 3.0 bar 30-159 4.0 kw
F08V 1100-26000 ø 80 3.0 bar 7-159 4.0 kw
F10 8000-30000 ø 80 3.0 bar 47-187 5.5 kw
F11 8000-35000 ø 80 3.0 bar 47-216 5.5 kw
F11V 2000-35000 ø 80 3.0 bar 11-216 5.5 kw
