Pneumatic, membrane press for grapes, Velvet 10-15-23-34

Producer: DIEMME Enologia

Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force, with closed AISI 304 stainless see full description

This item is not available in our online store. In order to receive a non-binding quote, we encourage you to submit an inquiry using the "Ask about the product" button. In case of additional questions, we will contact you to arrange the details.

Print product specification

Full description
Files to download

DESCRIPTION

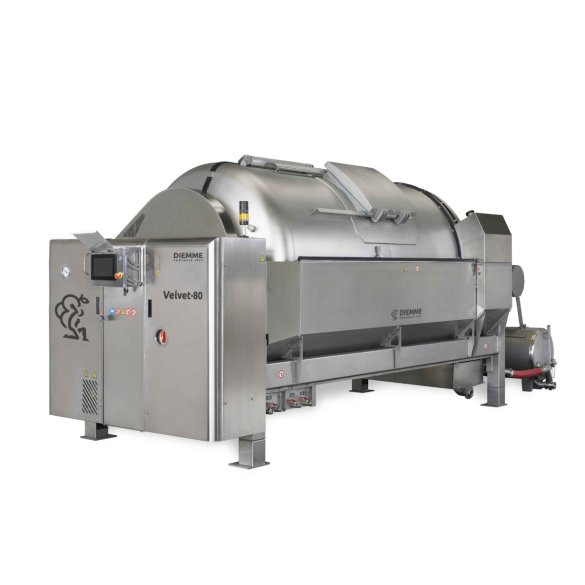

Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force, with closed AISI 304 stainless steel tank. High draining efficiency thanks to mirror-polished channels placed along the internal lateral surface. Simplified
cleaning operations thanks to a quick assembly and disassembly system. Large double door manually opened and closed with mechanical safety lock. Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, no minimum load required. Quick fastening system without perforation of the membrane. Frame entirely made of AISI 304 stainless steel.
Electric control panel and covers entirely made of AISI 304 stainless steel, in compliance with current European Directive in force.

Machine equipped with compressor for membrane inflation and blower for vacuum. Safety side protection and emergency button for user’s safety. This machine meets current European Directive in force.

Automation
Simple and user-friendly operator interface E-panel with “Touch-Screen” to easily access to programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status. 30 pressing programs are stored in the PLC and a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing the pressing cycle time.

Files to download

Velvet_prasa do winogron_grape press_diemme
