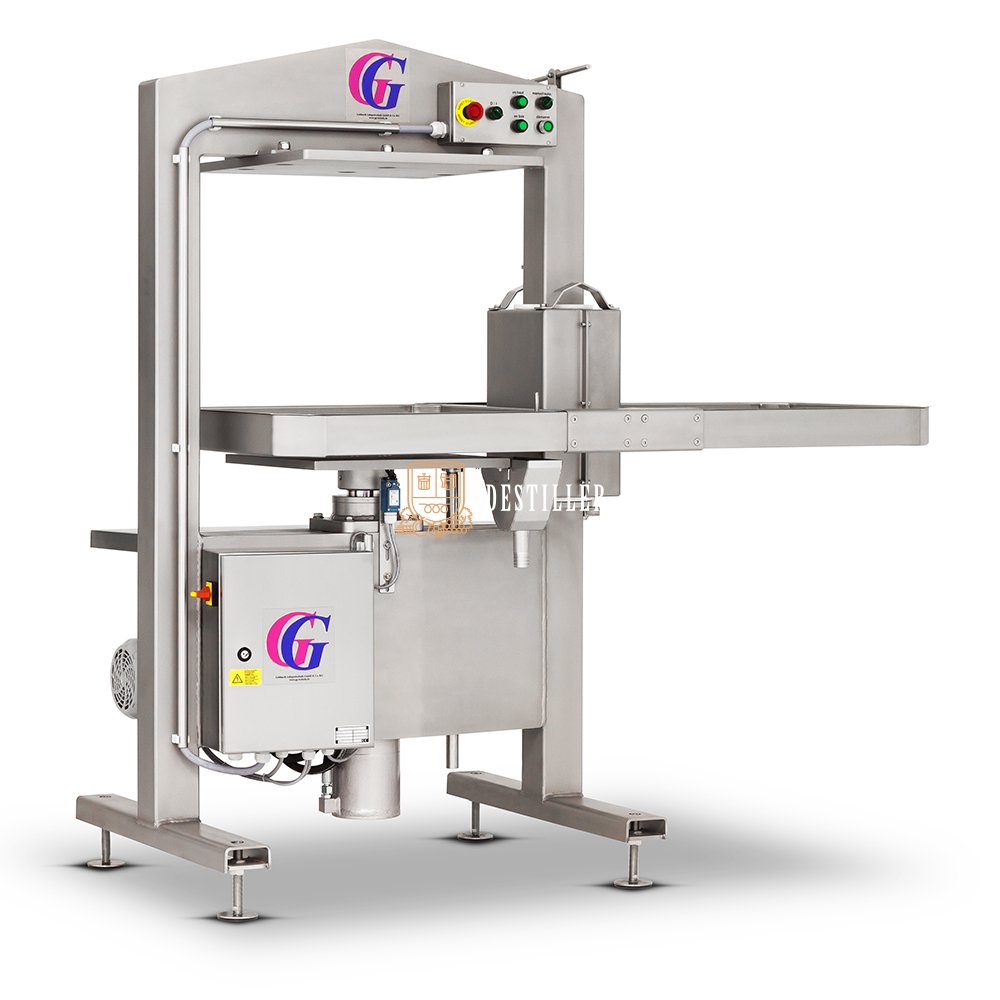

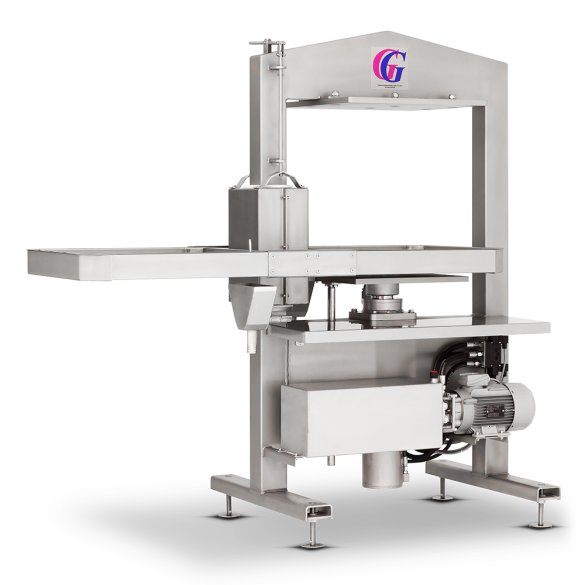

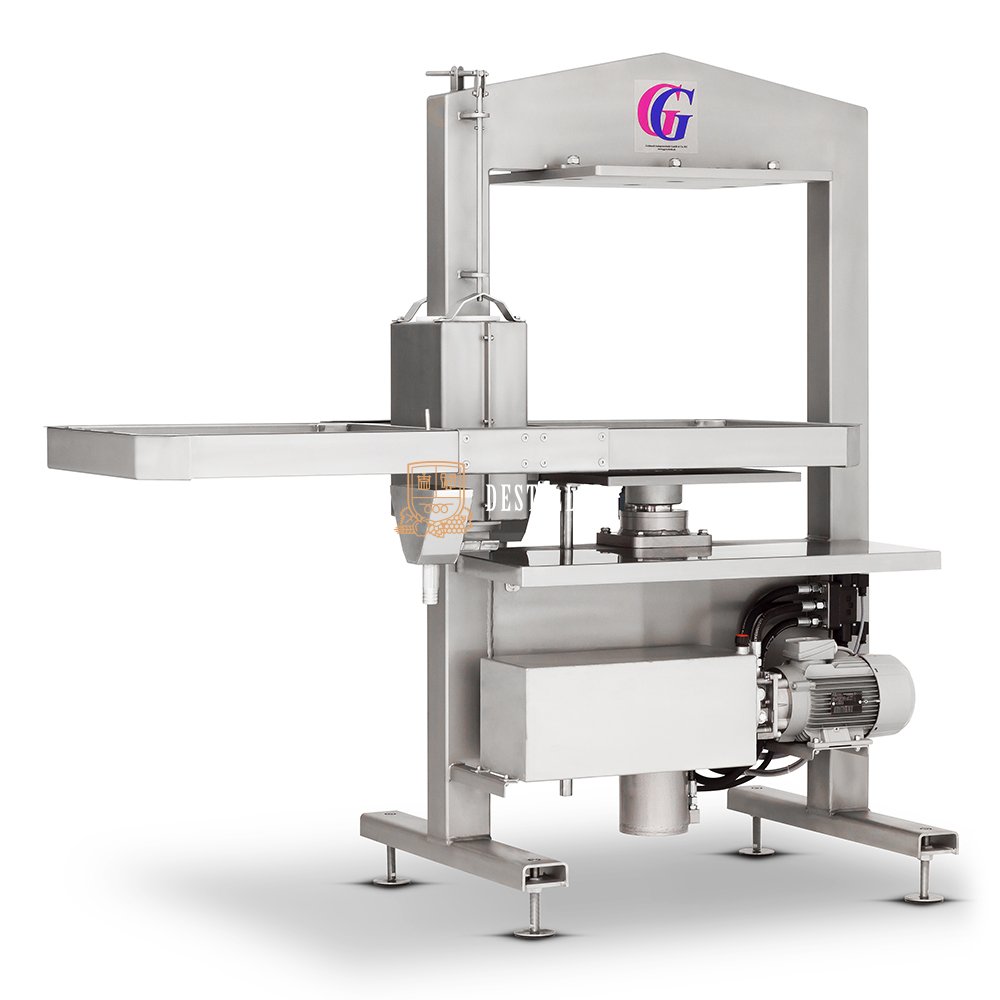

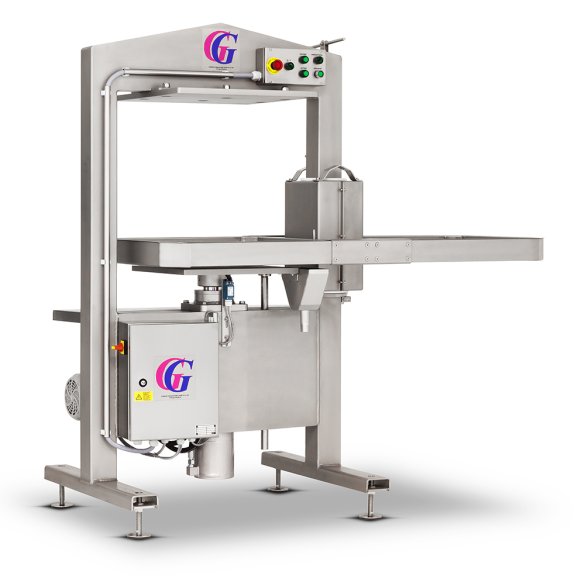

Packing press, PP80
Producer: GG Technik
The Packing Press is entirely made of stainless steel. The best juice quality and juice yield is achieved in using the integrated automatic
see full description
DESCRIPTION
The Packing Press is entirely made of stainless steel. The best juice quality and juice yield is achieved in using the integrated automatic press system. Due to the integrated rotary bit, working continuously with two stacks raises the efficiency. There is no waiting time while pressing. A long piston stroke ensures that even small amounts can be pressed. Adjustable feet ensure a stable standing and make the cleaning under the press easier. All hydraulics is mounted below the rotary bit, so that no oil can reach the juice.
Specifications:
- Length: 1750 mm
- Width: 850 mm
- Height: 1750 mm
- Mash quantity per stack: approx. 100 l
- Performance /h: approx. 7-8 hub/h
- Swivelling radius of the bit: 1750 mm
- Hydraulic pump: 1,6 kW
- Piston stroke: 500 mm

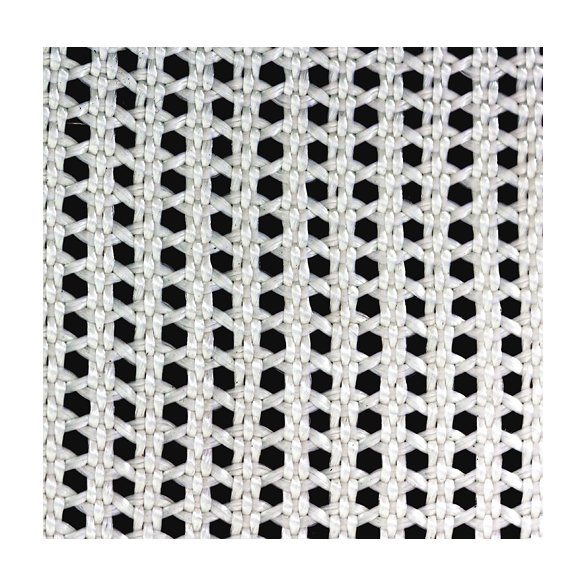

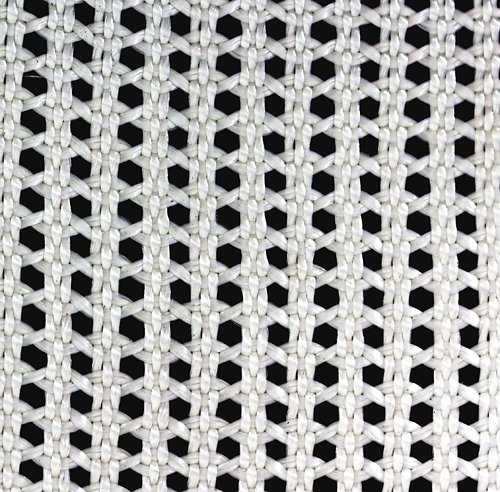

- Press cloth: 14 pieces 900 x 900 mm
- Press grate made of acacia wood: 16 pieces 500 x 500 mm

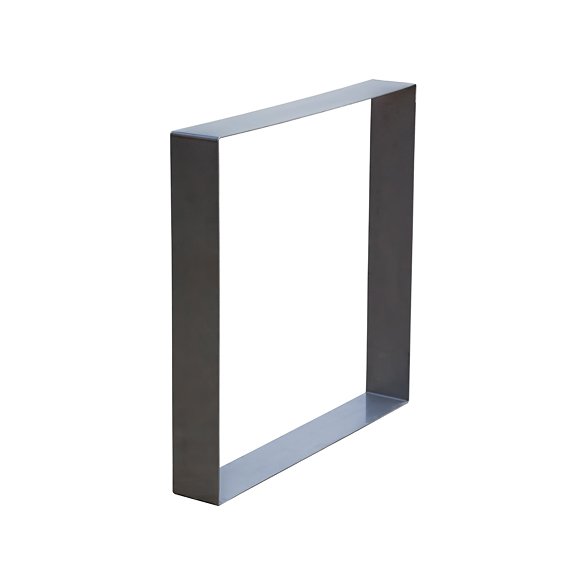

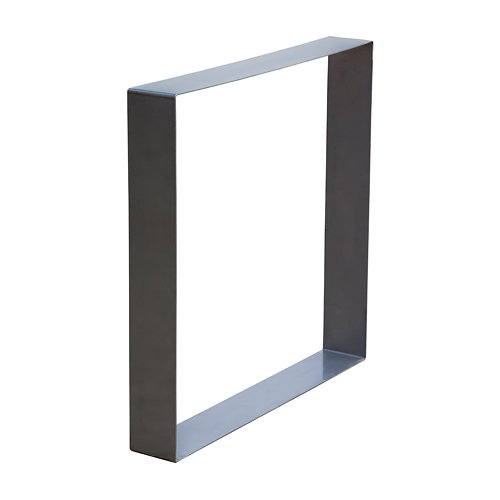

- Packing frame: 450 x 450 x 70 mm
- Weight: 450 kg
