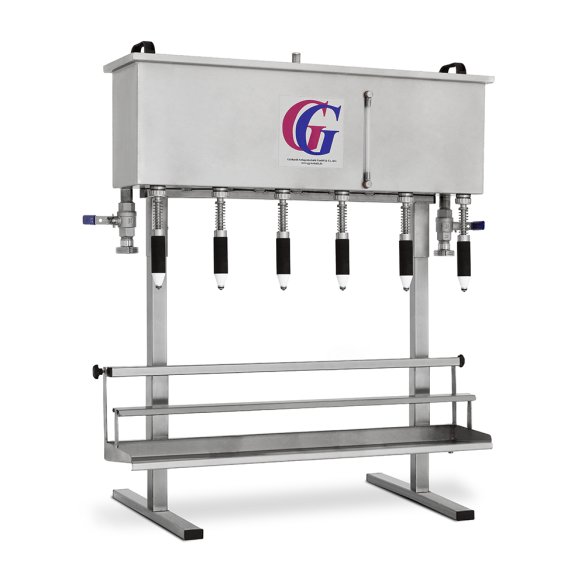

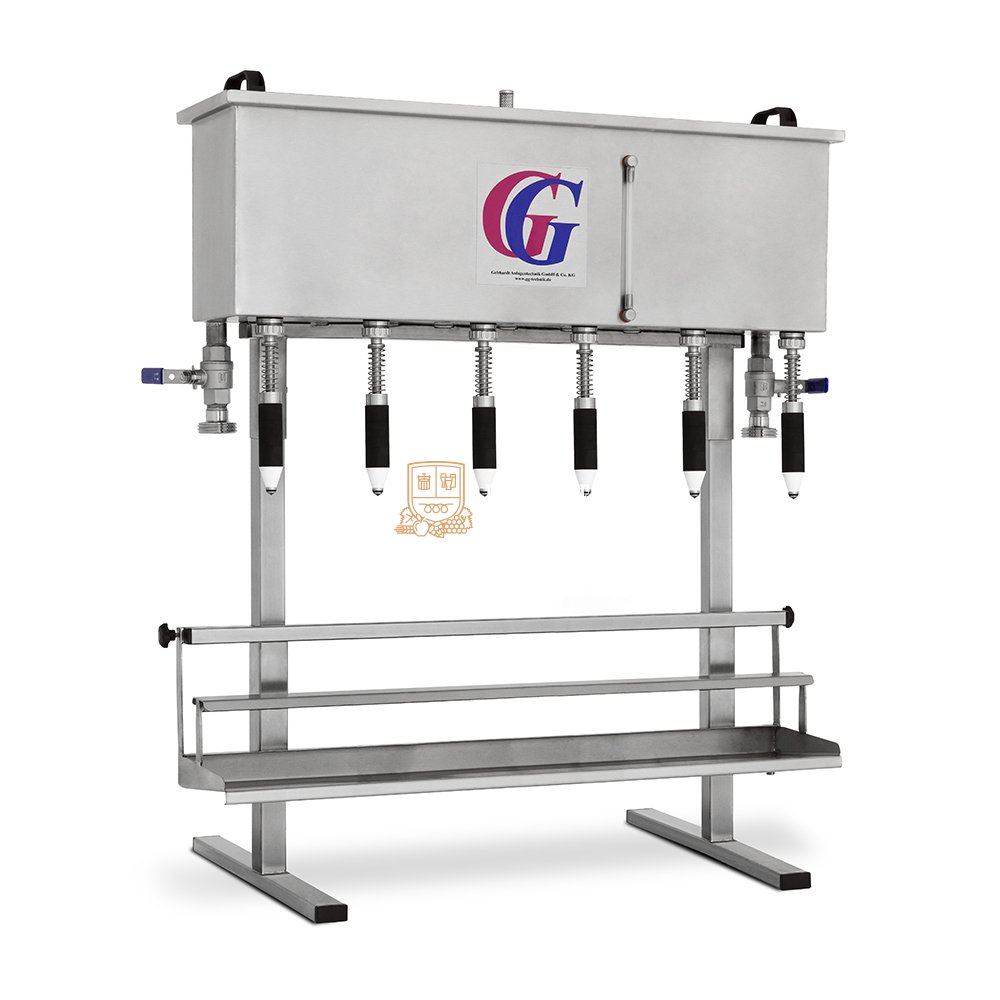

Gravity filler, 6 nozzles for glass bottles, RF6

Product code: RF6

These bottle fillers are made entirely of stainless steel, which makes them hygienic and easy to clean. They are ideal for filling hot fruit see full description

Print product specification

Full description

DESCRIPTION

These bottle fillers are made entirely of stainless steel, which makes them hygienic and easy to clean. They are ideal for filling hot fruit juices and alcoholic beverages such as Bottling wines, schnapps, liqueurs. Depending on the liquid and bottle size, up to approx. 600 liters can be filled per hour. By changing the rubber cone, bottles with twist-off closures can also be filled.

Functional description:

The buffer tank is filled with the medium to be bagged through the inflow tap and the inflow NW 25. The level display shows the fill level of the buffer tank. The cone of the filler valve is pushed upwards with the bottle opening and the bottle is filled immediately. Place the bottle in the bottle support. Take care to stand the bottle straight under the filler valve. Once the bottle is full, you can take it out the bottle support by lifting it up slightly.

Specifications:

Filling performance: 600 l/h
Filling valves: 6
Tank capacity: approx. 32 l
Filling valve: Standard 14 mm

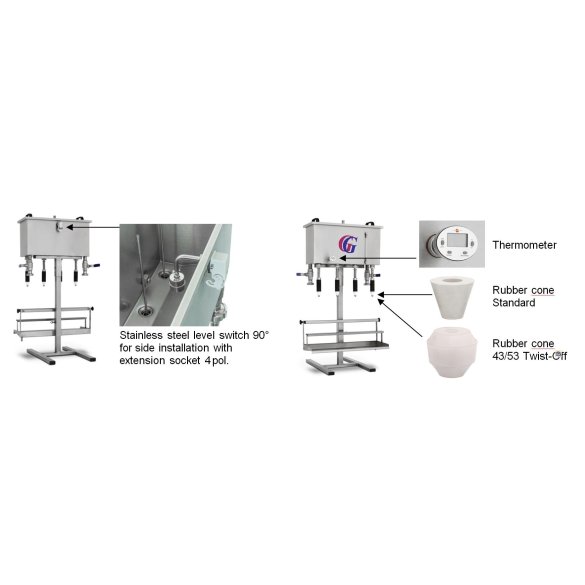

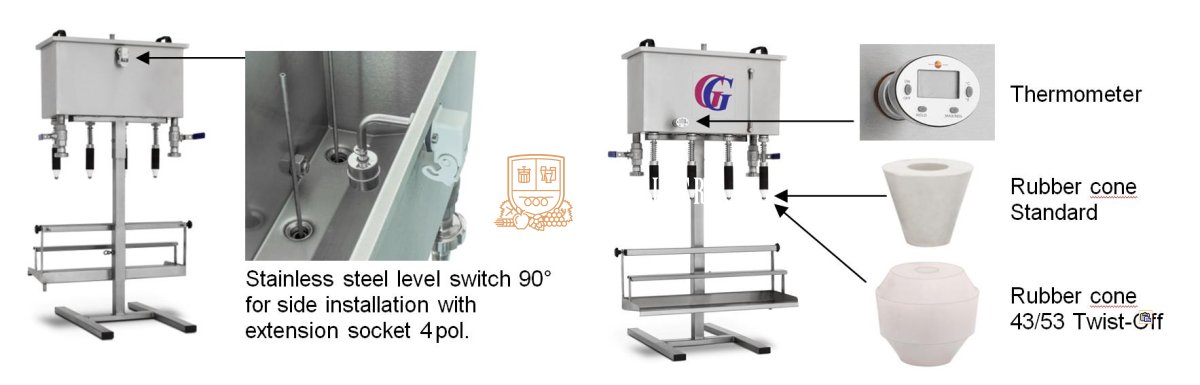

Rubber cone: Standard 30-14 H25
Max. bottle height: 350 mm
Max. bottle diameter: 125 mm
With level indicator
Without insertion thermometer
Length x Width x Height: 930 mm x 670 mm x 1000 mm
Weight: approx. 38 kg

From this manufacturer

The bag-in-box filler BBF6 is a semiautomatic filling machine. The BBF6 weighing system, by which the bag contents are determined, can be calibrated. With this machine you are able to fill

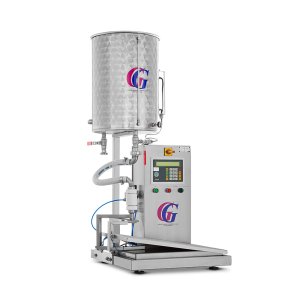

Bag in Box Filler, BBF6

The Packing Press is entirely made of stainless steel. The best juice quality and juice yield is achieved in using the integrated automatic press system. Due to the integrated rotary

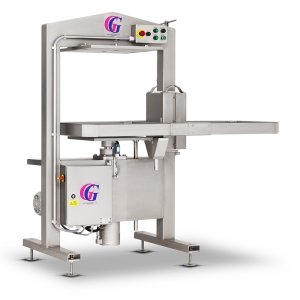

Packing press, PP80

The bag-in-box filler BBF14 is a semiautomatic filling machine which can be used to fill single bags and bag on tape. By the amount measurement, it is possible to fill 3 l-, 5 l-,

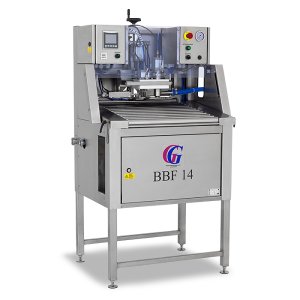

Semiautomatic bag in box filler

The Packing Press is entirely made of stainless steel. Without the integrated automatic press system. Only manual using. A long piston stroke ensures that even small amounts can be

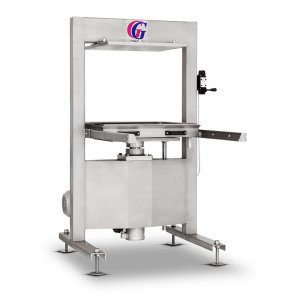

Small, professional packing press, PP40

These bottle fillers are made entirely of stainless steel, which makes them hygienic and easy to clean. They are ideal for filling hot fruit juices and alcoholic beverages such as Bottling wines,

Gravity filler, 6 nozzles for glass bottles, RF4

The Barrique barrel steam adapter is used to steam oak barrels.
The ball valve allows interrupting the flow of steam so that the barrel can be changed. Specifications: Steam hose: 19

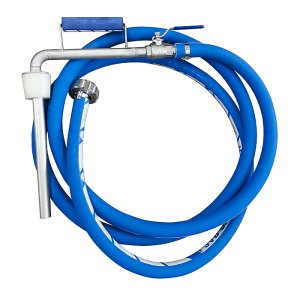

The Barrique barrel steam adapter

This steam generator is extremely fast with a continuous supply of steam fully operational in 60 seconds always ready to steam continuous steam supply as long as needed water level

Steam generator

The bottle steamer has been developed for preheating and sterilizing the bottles before hot filling. With a shaped casting fitting for the bottle, it is also guaranteed that the bottle mouth

Bottle steamer

Stainless steel slotted tubular filter for pre-cleaning and filtration of fresh juices and liquids. Suitable for processing low-viscosity media. Also suitable for processing juices and beverages

Juice filter - Pipe-screen-combination

The BWA1000 fruit washer is specifically designed for washing, transporting, and crushing fruit. Fruit is washed in an aeration bath and transported by conveyor belt to the mill/crusher. It can

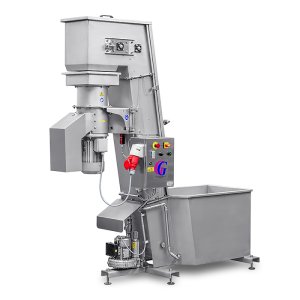

Washer, feeder, crusher for fruits and selected vegetables, BWA1000

The cavity pump is used to transport all kinds of mash through a hose, to the next processing step.
To ensure that the mash funnel does not overflow, the mash sensor is connected to the

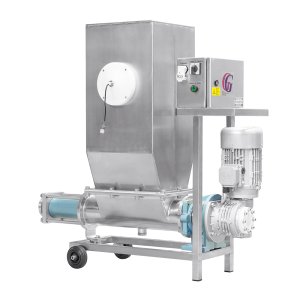

Screw pump with buffer tank
