Grain mill, HQ 3

Producer: Voran

Availability: 14 days

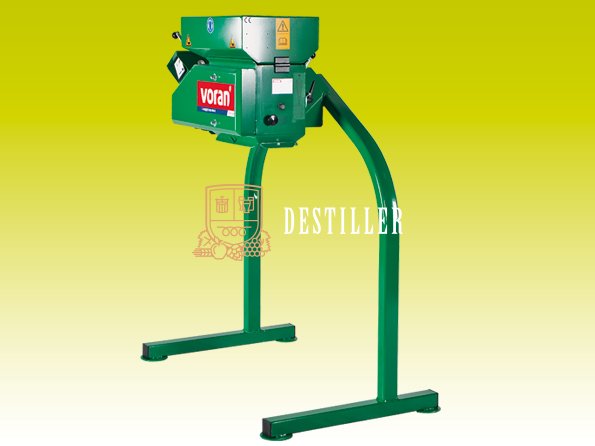

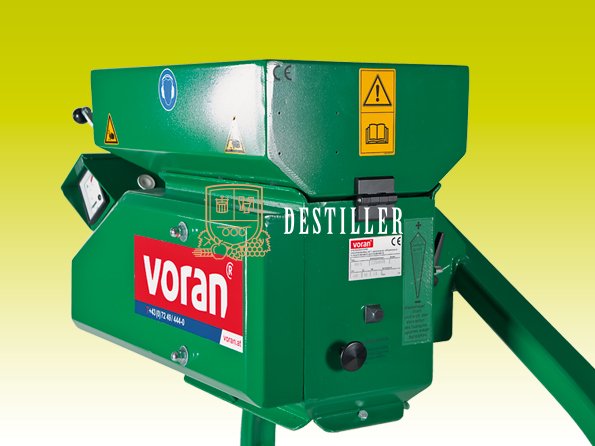

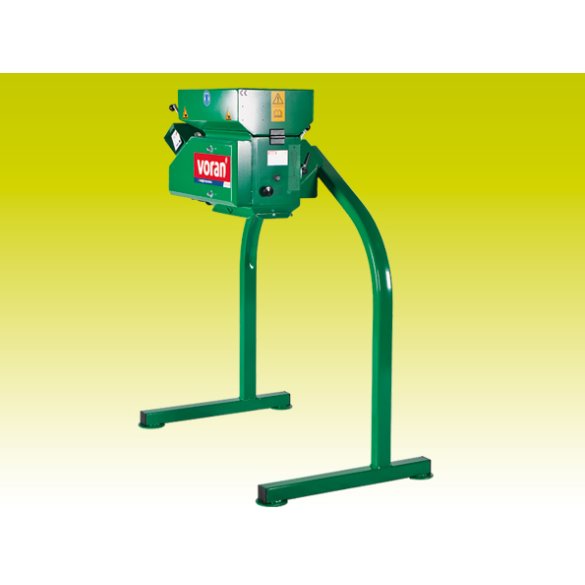

Cereal mill with two driven, fully hardened rollers (stainless steel alloy), adjustable grinding gap and standard magnetic separator. Deep pocket see full description

Gross price: 6 581 €

Net price: 5 350 €

Print product specification

DESCRIPTION

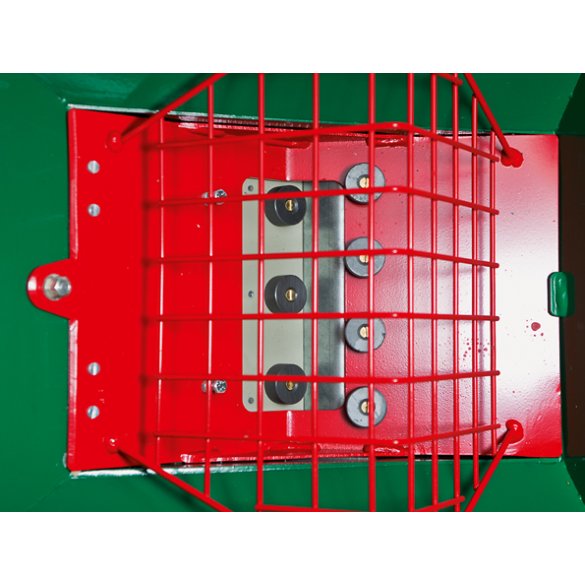

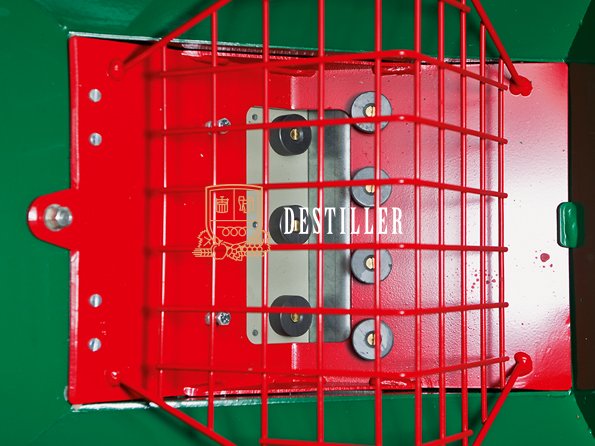

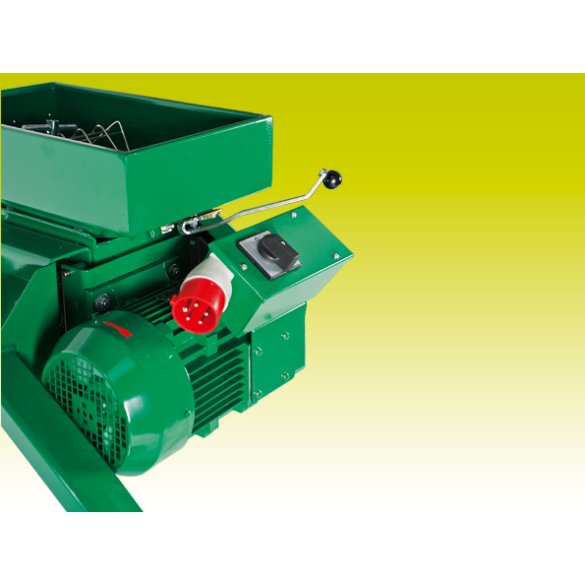

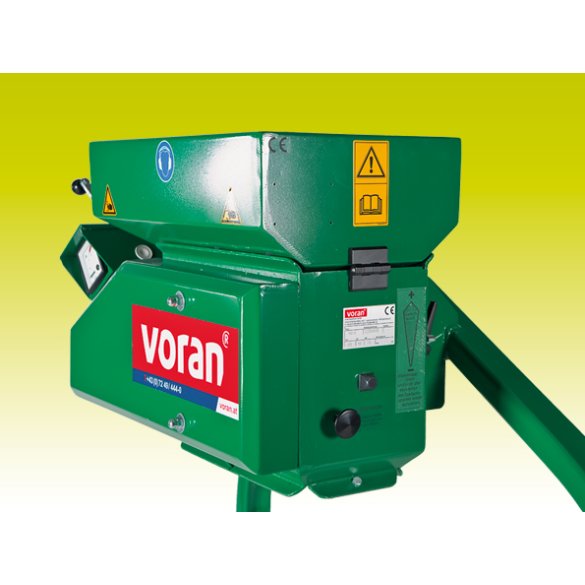

Cereal mill with two driven, fully hardened rollers (stainless steel alloy), adjustable grinding gap and standard magnetic separator. Deep pocket grinding of the roller ensures optimal shape of the milled cereal flakes.

Technical data

Mixed grain capacity - 500 kg/h
Oat capacity - 400 kg/h
Throwing height - 860 mm
Material: painted steel
Weight 100 kg

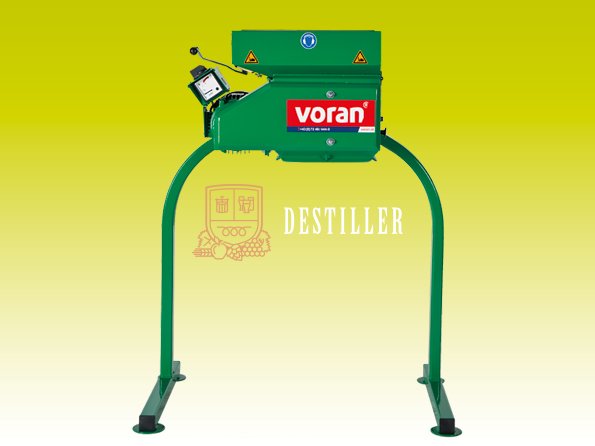

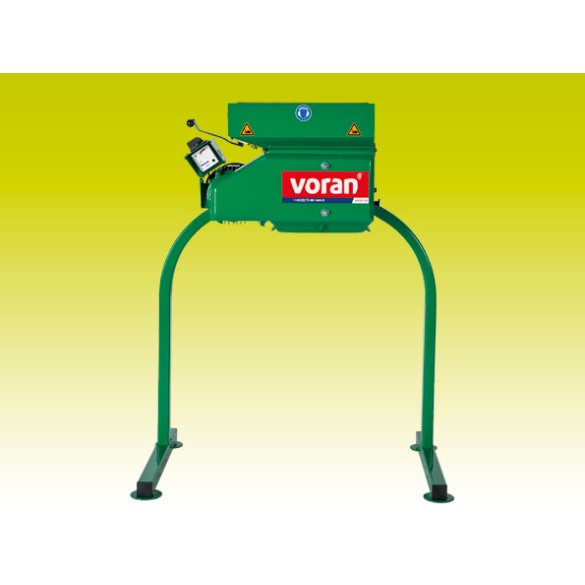

Height with frame 1 275 mm
Electrical fuse 16 A
Electrical connection 400V 50Hz (three-phase)

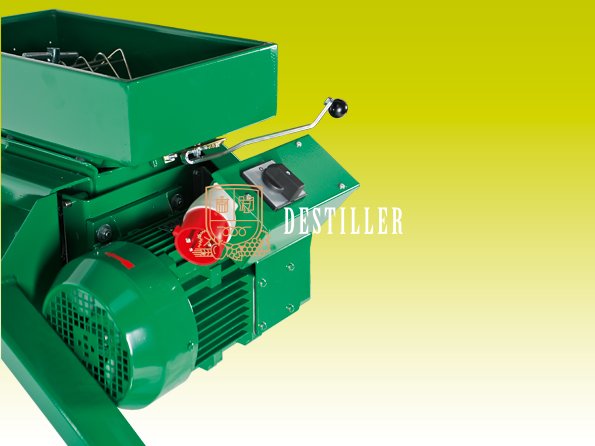

Motor power 3 kW
Processible materials: cereals, peas, broad beans.

Video

Files to download

Grain mill
