DESCRIPTION

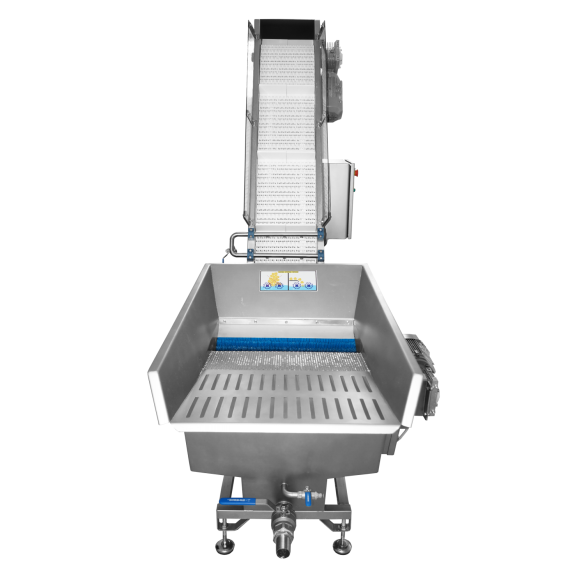

The fruits go to the input hopper, after soaking the elevator towards the fruit under the secondary clearwater sprays. Easy to clean, with massive polypropylene/acetal modular elevator, steplessly adjustable speed in both ways, with 2pcs rotating, 2pcs fix wheels or vibration-free feet. Requires minimal maintenance.
Technical data
Performance: 3000 kg/h
Power: 5 kW, 400 V, 16 A, 3 phase
Weight: 360
Size: 3660 x 2120 x 950 mm
Technical details:
- Performance: 3000 kg/h
- Electric demands: 5 kW, 400 V,16 A
- Material: Wnr. 1.4301, AISI 304 stainless steel
- Weight: 360 kg
- Tub water capacity: 440 L
- Washing water supply: 100-200 L/h (depending on the setting)
- Water connection: ¾” quick connector
- IP65 certified electronics
- Grinder with a massive crushing hammer (available for beetroot and quince))
- The grinder can be by-passed and turned, this way the machine is capable of process stone-fruits
- Noise emission: 60-70 dB
- 4 pcs of strong, counter-rotating brushes for the intense cleaning
- Rotating paddle, that towards the washed fruit to the elevator
- Requires minimal maintenance
- Adjustable belt speed
Options:
- Changeable diameter sieve: for changing the texture of the mash
- Stop ‘n’ Go system: membrane sensor, that allows the fruitwasher/grinder and the belt press work together
- Dosing module: sliding door with end-switch, that allows thedosing from the grinder safely to the packpress.
