Eccentric screw pumps belong to the group of rotary displacement pumps with the ability to self-suck the pumped medium.
The pump rotor rotates, and as a result, the substances filling the chambers are transferred in a screw manner from the suction side to the discharge side. The rotors in KIESEL screw pumps have a relatively large eccentricity in relation to the stroke. Thanks to this, it is possible to transfer large solids without fear of damaging the pump. Screw pumps perfectly suck in and pump liquids of various viscosities and consistency. The pumped liquids are not subjected to centrifugal or pulsating forces, thanks to which screw pumps successfully pump very delicate even the most sensitive media.
APPLICATION:

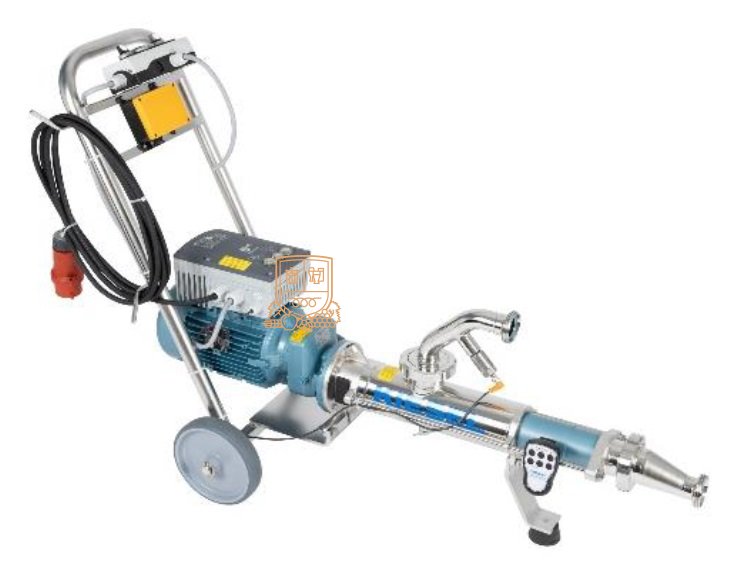

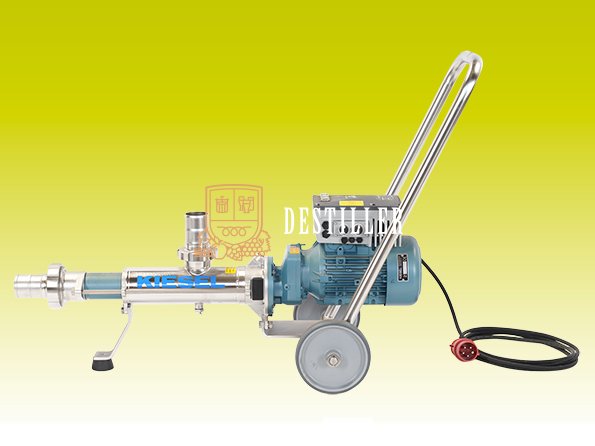

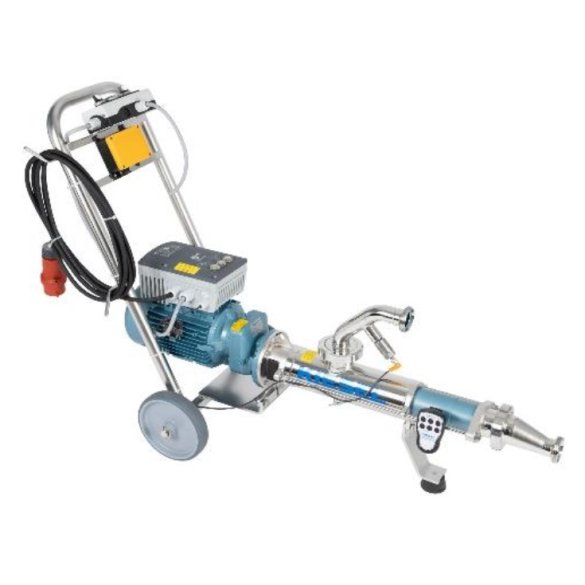

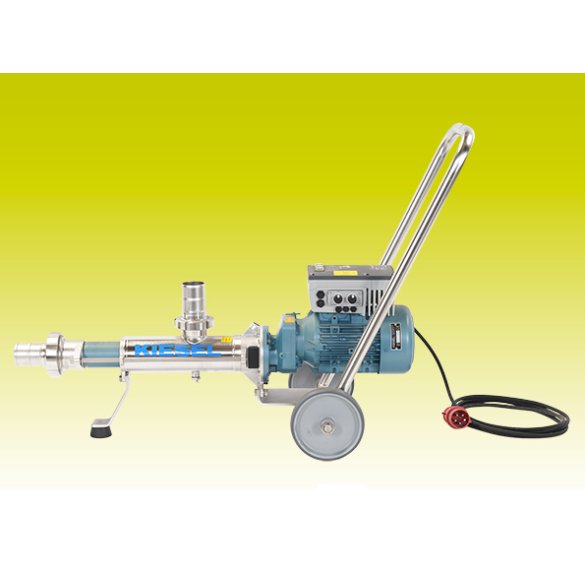

The presented pump is perfect for pumping (transporting): wine, beer, beer wort, cereal mashes (up to 100C) and fruit mashes, fresh juices, fruit musts, crushed fruit, fruit pulps, grape pulp, pomace from fruit pulps, fruit and vegetable products. The advantages of the pump also include its mobility.
TECHNICAL DATA:
| Model | Capacity | Electric power | Art. Nr |
| SP03 B05 | 100-600 l/h | 0,55 kW/1400 obr/min./400 V | 67837 |
| SP04 B05 | 200-2 200 l/h | 1,1 kW/1400 obr/min./400 V | 58790 |
| SP45 B05 | 550-4 200 l/h | 1,1 kW/1400 obr/min./400 V | 53984 |
| SP05 B05 | 840-8 100 l/h | 2,2 kW/705 obr/min./400 V | 65432 |
| SP06 B05 | 2 040-16 080 l/h | 4 kW/720 obr/min./400 V | 62030 |
| SP10 B05 | 2 700-20 700 l/h | 5,5 kW/460 obr/min./400 V | 49418 |
| SP12 B05 | 4 000-28 000 l/h | 5,5 kW/360 obr/min./400 V | 54029 |
| SP16 B05 | 6 000-40 000 l/h | 7,5 kW/236 obr/min./400 V | 69874 |

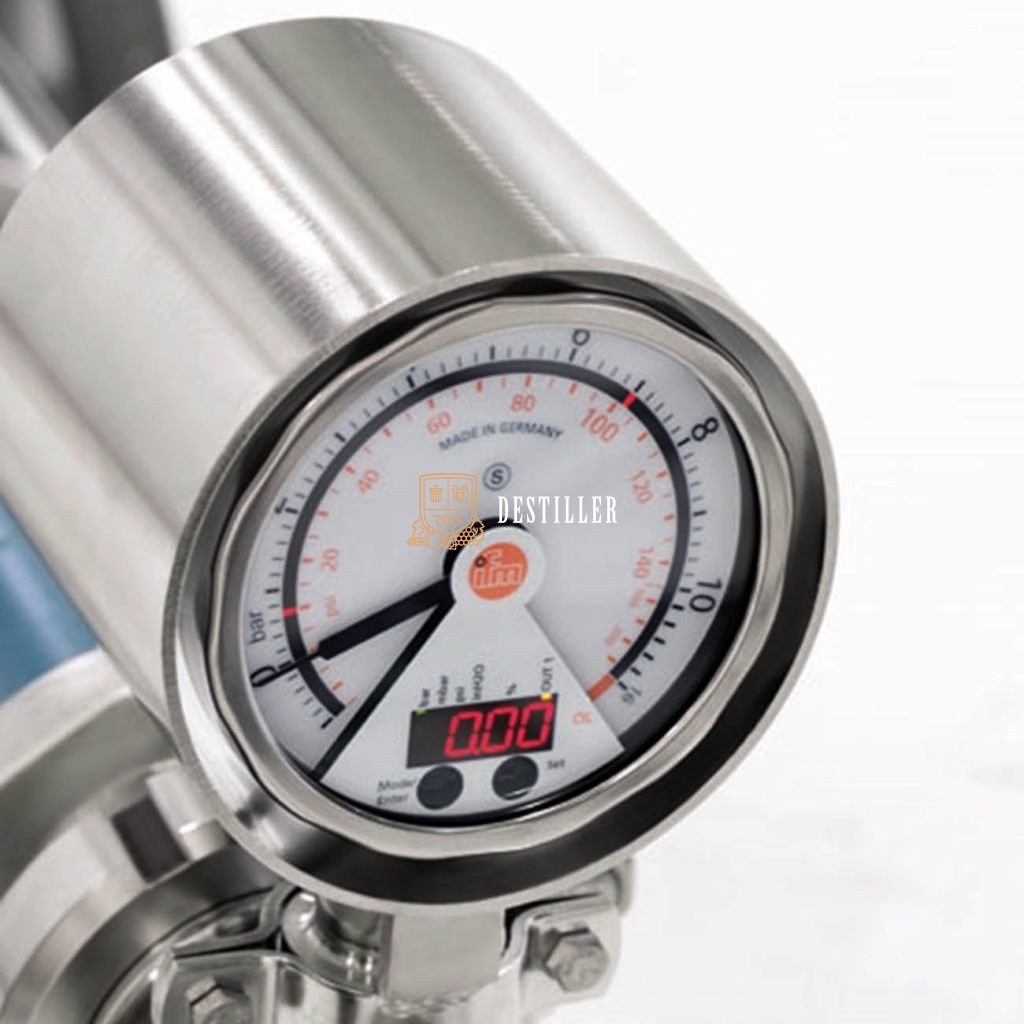

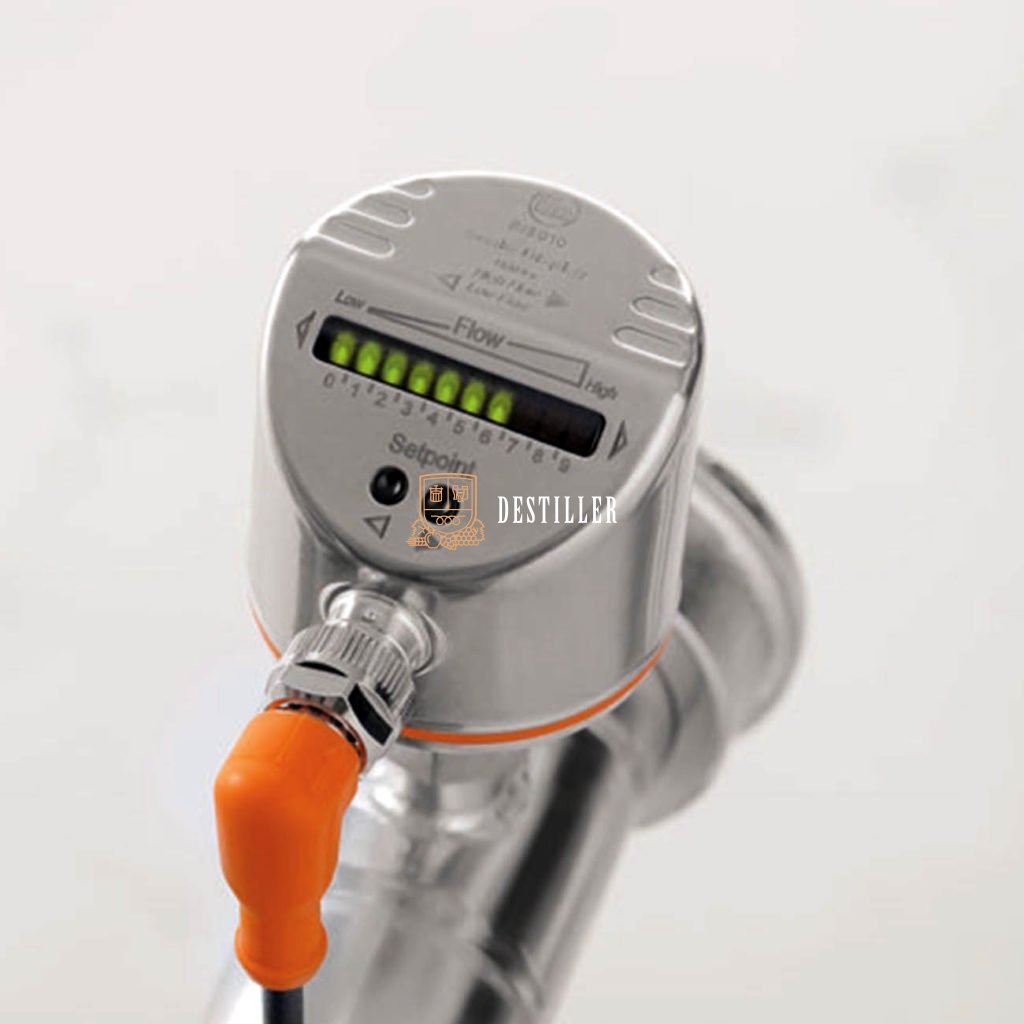

Additional equipment (additionally payable):
