DESCRIPTION

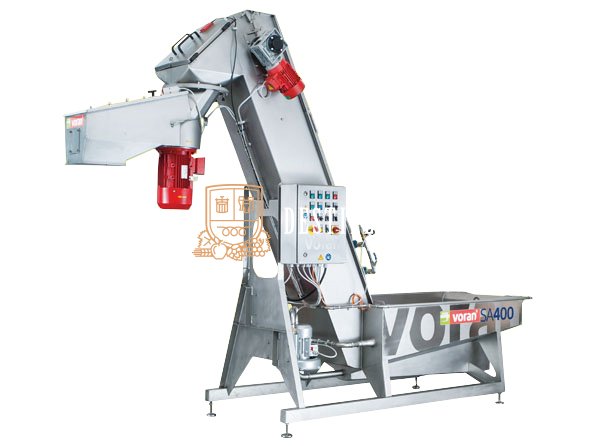

Washing system made of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM7.5. The conveyor speed can be adjusted by using the integrated frequency converter. Washing process takes place in the washing area with fresh water shower on the conveyor belt. The Elevator is suitable for processing different foods e.g. fruits, berries or vegetables. Due to the movability, there is a use with our without the Centrifugal mill possible without any modification work.
| Technical data |
| Height fruit outlet |
1 460 - 1 620 mm |
| Height mash outlet |
1 460 mm |
| Connection for washing vessel |
½ “ |
| Connection for cleaning |
HD M22 x 1,5 or G1/2“ AG |
| Material |
1.4301 / AISI 304 |
| Weight |
510 kg |
| Discharge height |
720 mm |
| Height |
2 570 mm |
| Width |
975 mm |
| Length |
3 600 mm |
| Electrical protection |
16 A |
| Connected load |
400V 50Hz (3 phases) |
| Motor rating |
11,1 (15,1) kW (PS) |
| Nominal rating kg/h |
up to 8 000 kg/h |
Processable materials
Apples, Pears, Carrots, Manioc, Quince, Beetroot, Vegetables, Tomatoes. This represents just an example, based on different materials and a selection of fruit processed in practice.
