Eccentric screw pumps belong to the group of rotary displacement pumps with the ability to self-suck the pumped medium.
The pump rotor rotates, and as a result, the substances filling the chambers are transferred by a screw from the suction side to the pressure side. The rotors in KIESEL screw pumps have a relatively large eccentricity in relation to the stroke. Thanks to this, it is possible to transfer large solids without fear of damaging the pump. Screw pumps perfectly suck in and pump liquids of various viscosities and consistency. The pumped liquids are not subjected to centrifugal or pulsating forces, thanks to which screw pumps successfully pump very delicate even the most sensitive media.
APPLICATION:

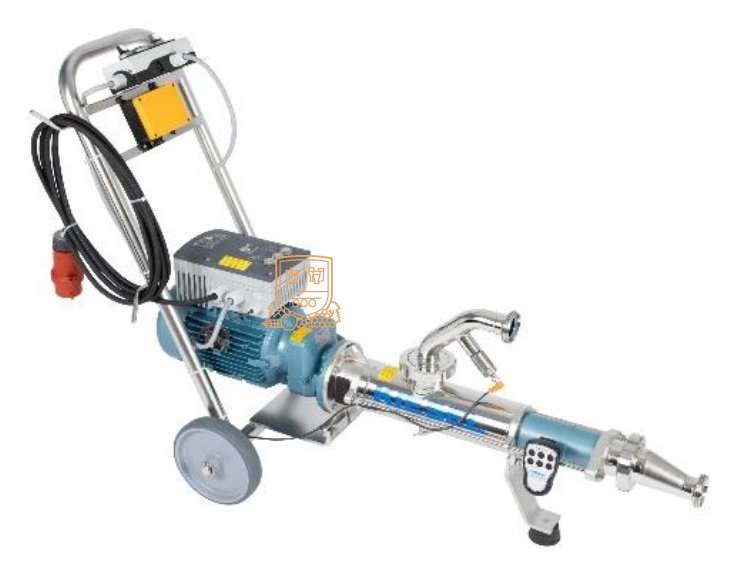

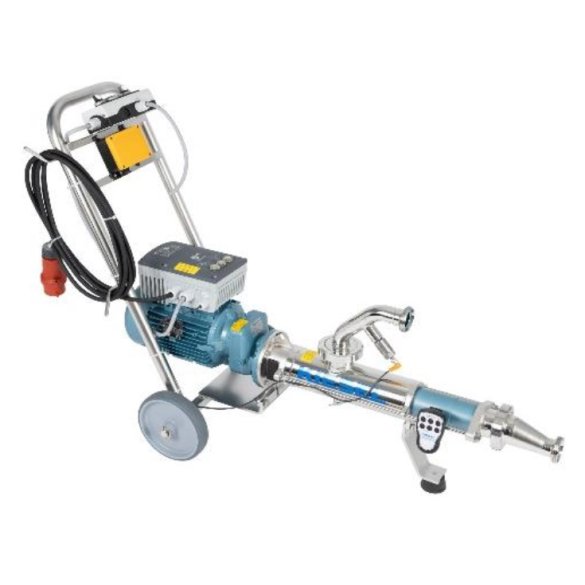

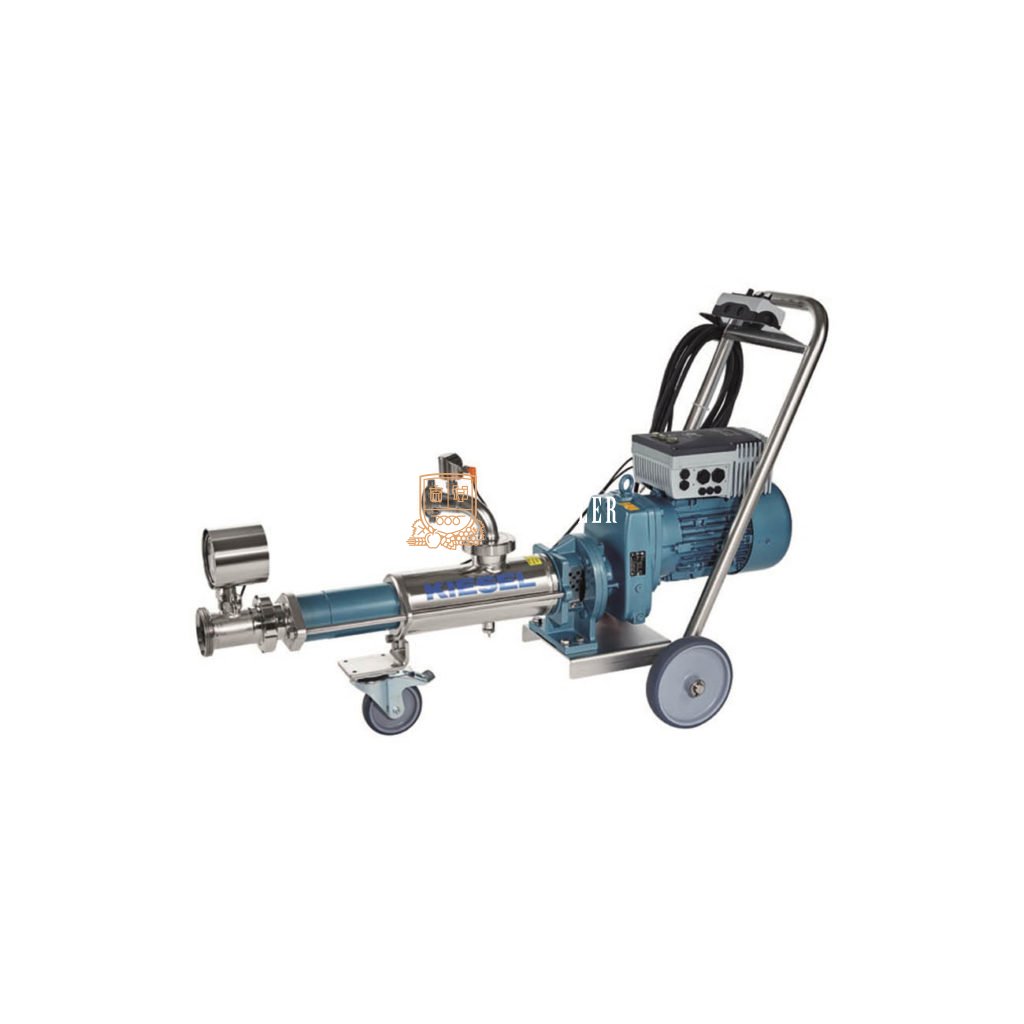

The presented pump is designed for delicate pumping (transport): wine, beer, beer wort, cider, juices, fruit musts. The advantages of the pump also include its mobility.
TECHNICAL DATA:
| Model | Capacity | Electric power | Art. Nr | Equipment |
| SP03 M05 | 100-700 l/h | 0,75 kW/900 obr./min./400 V | 56102 | bypass |
| SP04 M05 | 400-1 980 l/h | 1,1 kW/1400 obr./min./400 V | 51691 | bypass |
| SP45 M05 | 550-4 200 l/h | 1,1 kW/900 obr./min./400 V | 45396 | bypass |
| SP05 M05 | 840-8 100 l/h | 2,2 kW/700 obr./min./400 V | 47191 | bypass |
| SP06 M05 | 2 000-16 000 l/h | 4 kW/700 obr./min./400 V | 54649 | bypass |
| SP10 M05 | 2 700-20 700 l/h | 5,5 kW/460 obr./min./400 V | 6768 | bypass |
| SP12 M05 | 4 000-28 000 l/h | 5,5 kW/360 obr./min./400 V | 55166 | bypass |
| SP16 M05 | 6 000-40 000 l/h | 7,5 kW/236 obr./min./400 V | 56029 | bypass |
Additional optional equipment (additionally payable):

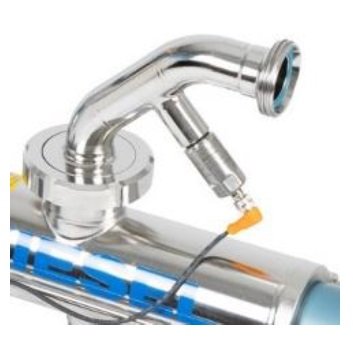

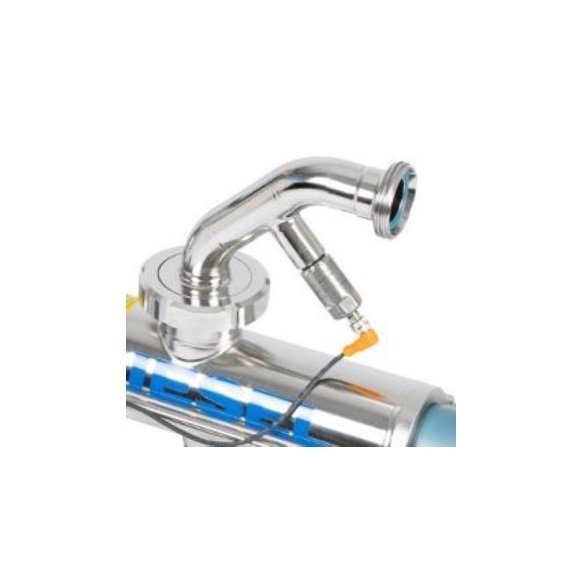

Dry-running protection sensor

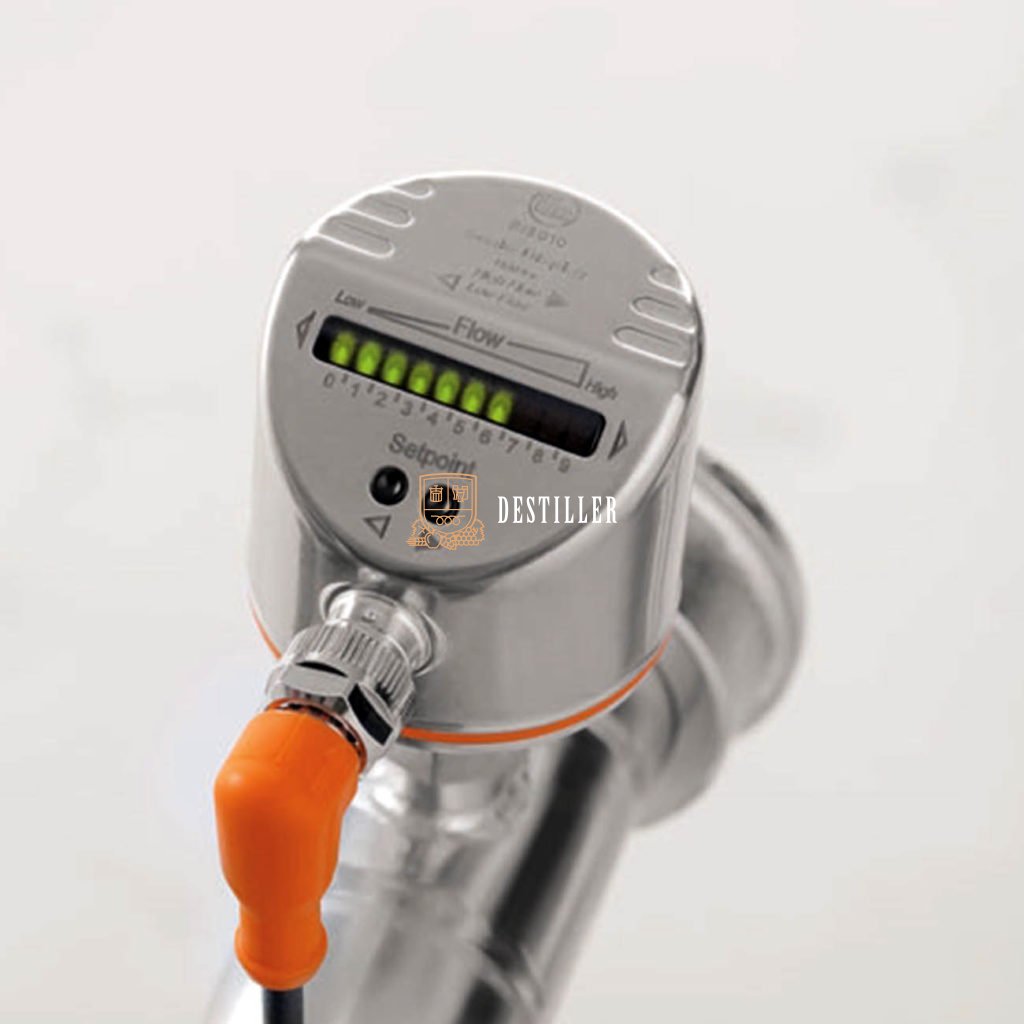

Electronic flow meter

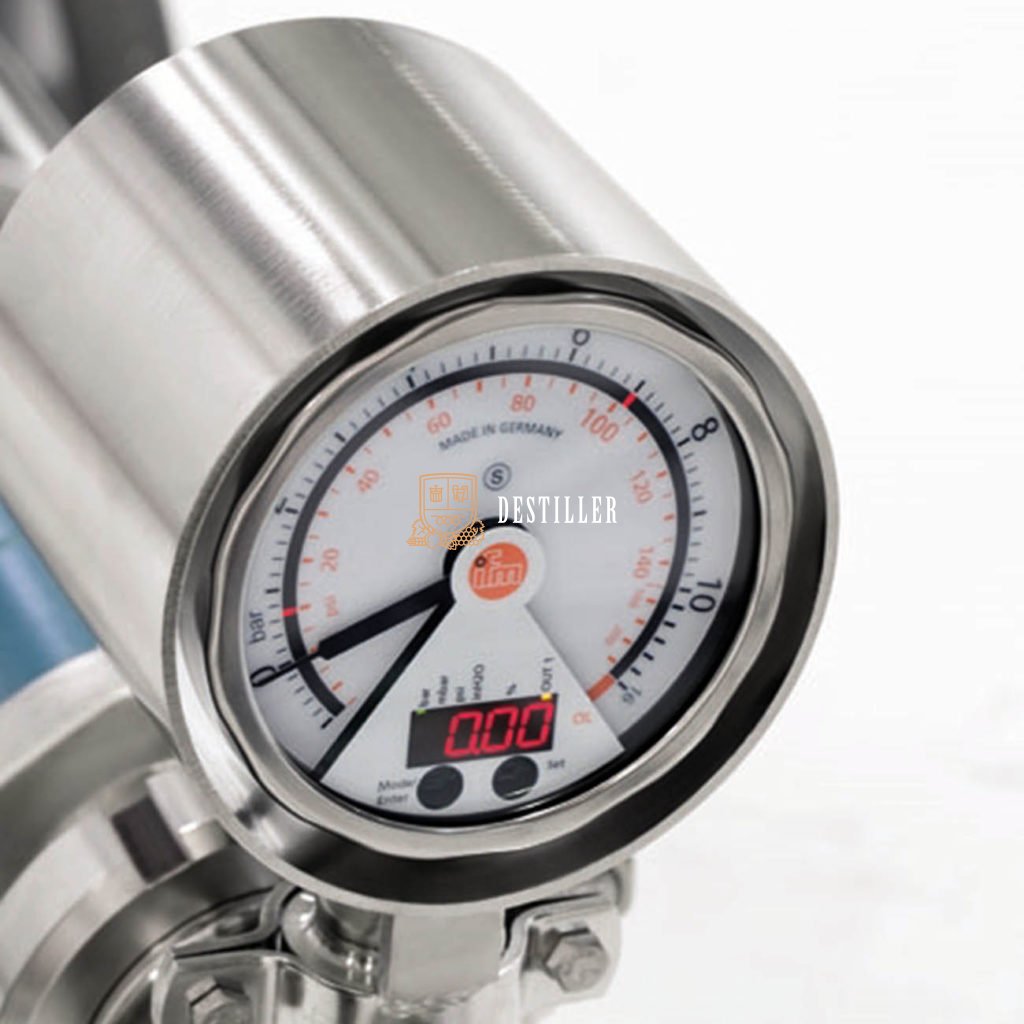

Pressure sensor

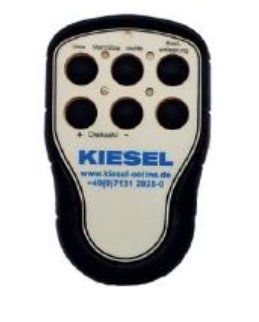

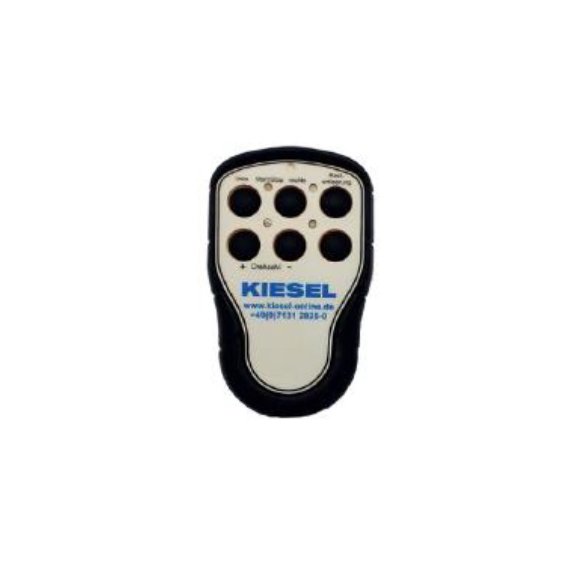

Pump remote control
