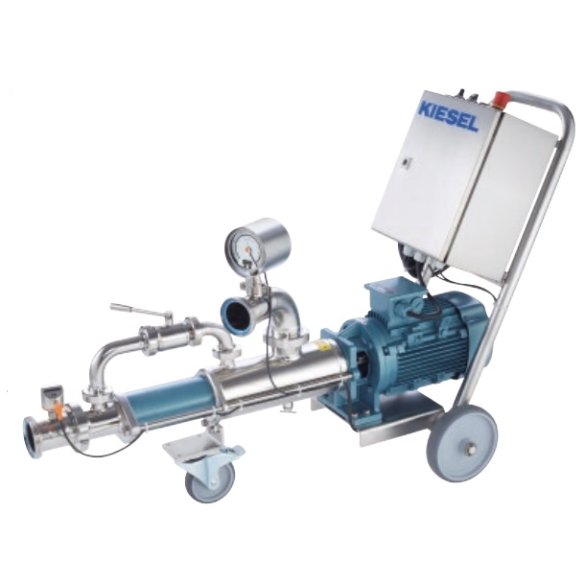

Eccentric screw pump SP045/M6 with inverter
Producer: KIESEL
Eccentric screw pumps belong to the group of rotary displacement pumps with the ability to self-suck the pumped medium.
The pump rotor rotates,
see full description
DESCRIPTION
Eccentric screw pumps belong to the group of rotary displacement pumps with the ability to self-suck the pumped medium.
The pump rotor rotates, and as a result, the substances filling the chambers are transferred by a screw from the suction side to the pressure side. The rotors in KIESEL screw pumps have a relatively large eccentricity in relation to the stroke. Thanks to this, it is possible to transfer large solids without fear of damaging the pump. Screw pumps perfectly suck in and pump liquids of various viscosities and consistency. The pumped liquids are not subjected to centrifugal or pulsating forces, thanks to which screw pumps successfully pump very delicate even the most sensitive media.
APPLICATION:
The presented pump is designed for delicate pumping (transport): wine, beer, beer wort, cider, juices, fruit musts. The advantages of the pump also include its mobility.
TECHNICAL DATA:
| Model | Capacity | Electric power | Art. Nr | Equipment |
| SP45 M06 | 500-4 200 l/h | 1,1 kW/900 obr./min./400 V | 46026 | bypass |
| SP05 M06 | 840-8 100 l/h | 2,2 kW/900 obr./min./400 V | 72215 | bypass |
| SP06 M06 | 2 000-16 000 l/h | 4 kW/700 obr./min./400 V | 51588 | bypass |
| SP10 M06 | 2 700-20 700 l/h | 5,5 kW/460 obr./min./400 V | 58536 | bypass |
| SP12 M06 | 5 000-28 000 l/h | 5,5 kW/360 obr./min./400 V | 47868 | bypass |
| SP16 M05 | 6 000-40 000 l/h | 7,5 kW/236 obr./min./400 V | 51700 | bypass |
| SP20 M05 | 10 000-60 000 l/h | 15 kW/180 obr./min./400 V | 71006 | bypass |
| SP20 M05 | 12 000-85 000 l/h | 22 kW/200 obr./min./400 V | 61595 | bypass |
Additional optional equipment (additionally payable):
Dry-running protection sensor
Electronic flow meter
Pressure sensor
Pump remote control
