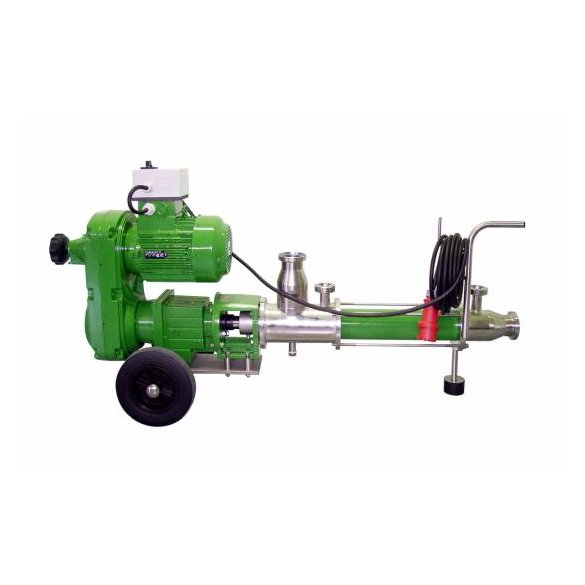

Eccentric screw pump driven by a continuously variable gear. The pump speed and thus the flow rate of the pump can be precisely adjusted by turning the knob. This increases the service life of the pump and causes a very gentle handling of the conveyed material. By using a planetary gear in the design of the differential, the flow rate can be reduced to almost "zero".
Flow rate Q: from 600 l/h to 50,000 l/h
A range of applications:
Wherever particularly gentle transport is required and precise adjustment of the feed rate is necessary in the entire speed range.
Technical Specifications
| Pumpentyp | Baugröße | Drehzahl (UpM) | Fördermenge Q (l/h) |
|---|---|---|---|
| AT 50 P | 1 - 6 L | 271 – 1430 | 600 – 5300 |
| AT 100 P | 2 - 6 L | 143 – 1429 | 1000 – 10000 |
| AT 150 P | 5 - 6 L | 190 – 1000 | 2000 – 15000 |
| AT 200/150 P | 10 - 6 L | 95 – 500 | 2500 – 15000 |
| AT 200 P | 10 - 6 L | 136 – 714 | 3600 – 20000 |
| AT 300/240 P | 17 - 6 L | 76 – 400 | 4000 – 24000 |
| AT 300 P | 17 - 6 L | 90 – 530 | 5000 – 32000 |
| AT 400 P | 17 - 6 L | 113 – 674 | 6000 – 38000 |
| AT 500/320 P | 35 - 6 L | 60 – 317 | 6000 – 32000 |
| AT 500/400 P | 35 - 6 L | 75 – 400 | 7500 – 40000 |
| AT 500 P | 35 - 6 L | 90 – 500 | 9000 – 50000 |
