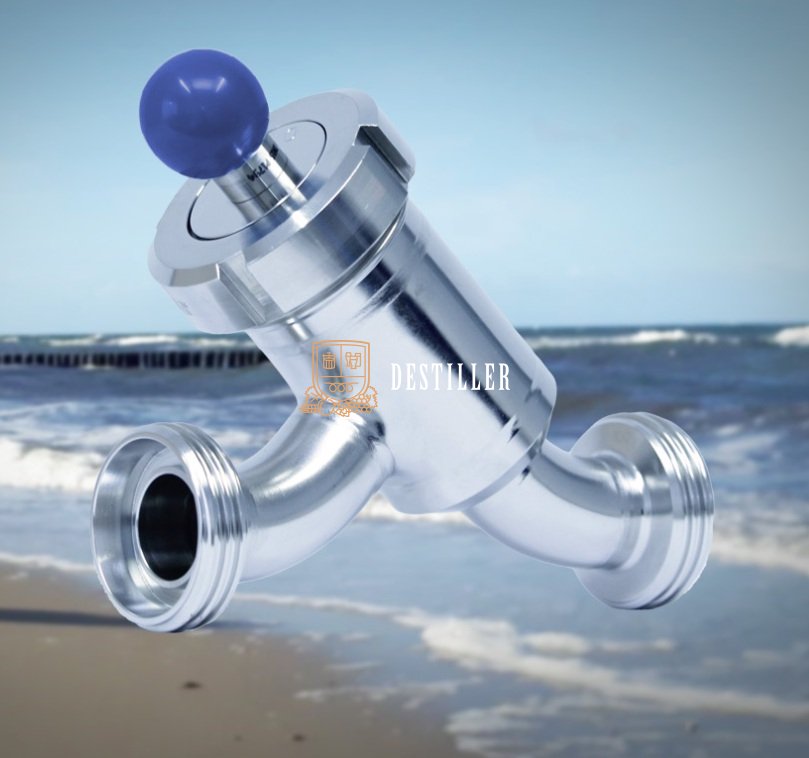

Dirt collecting filter

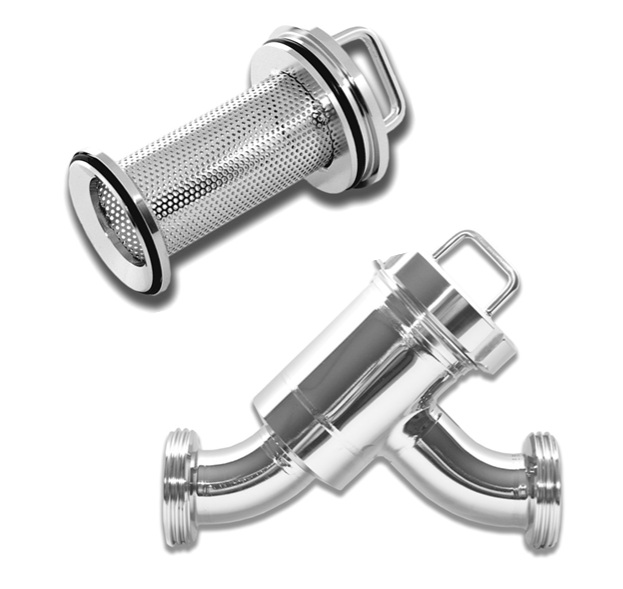

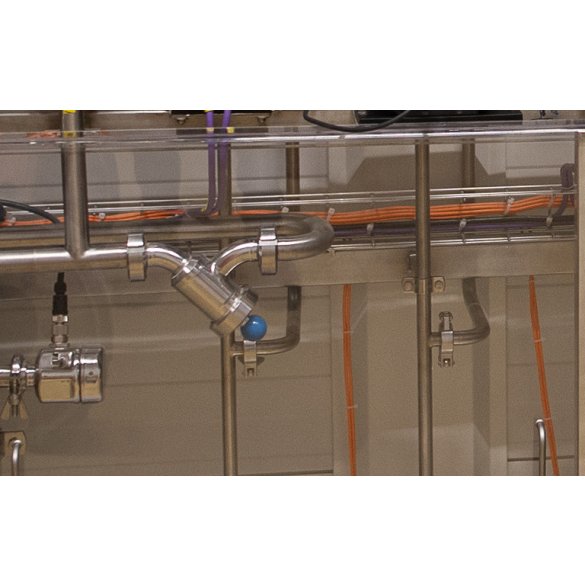

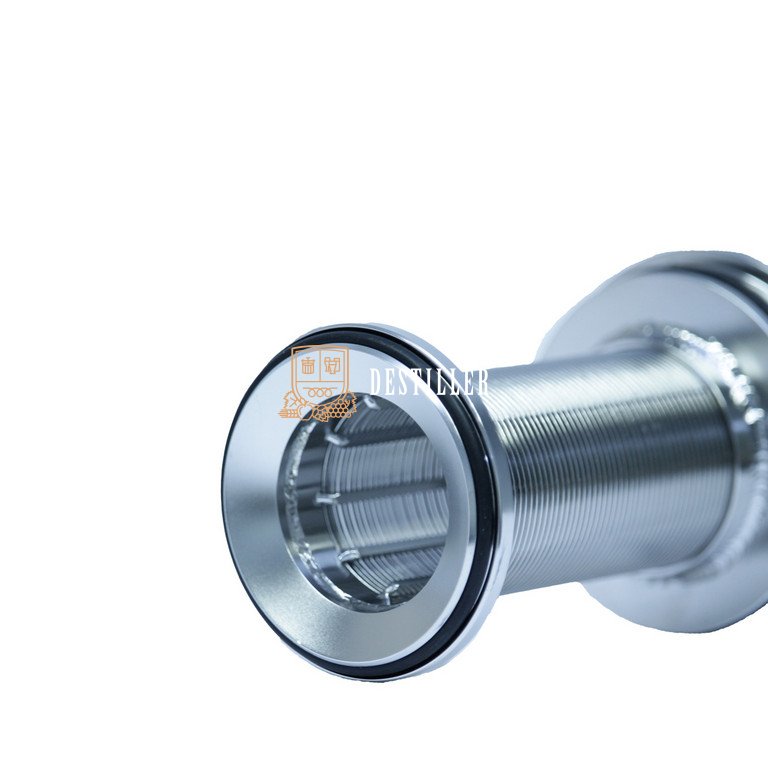

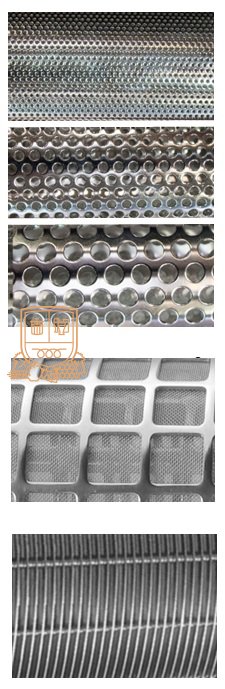

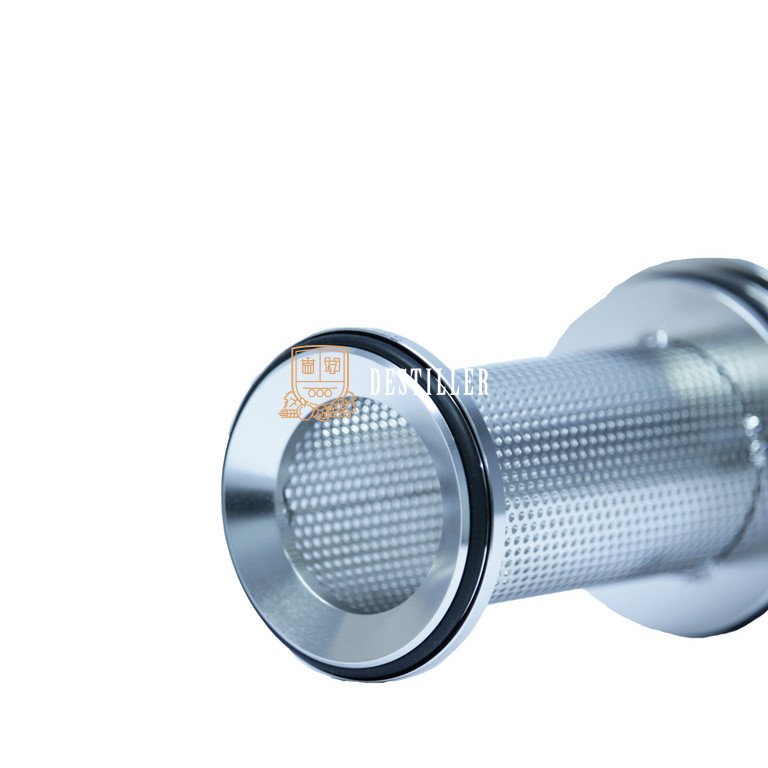

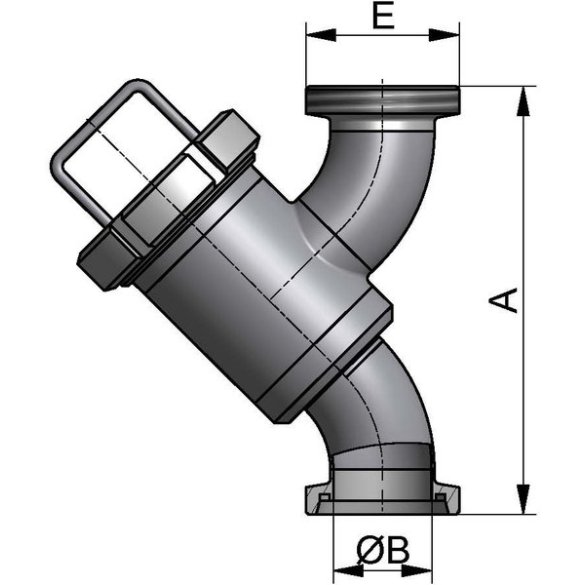

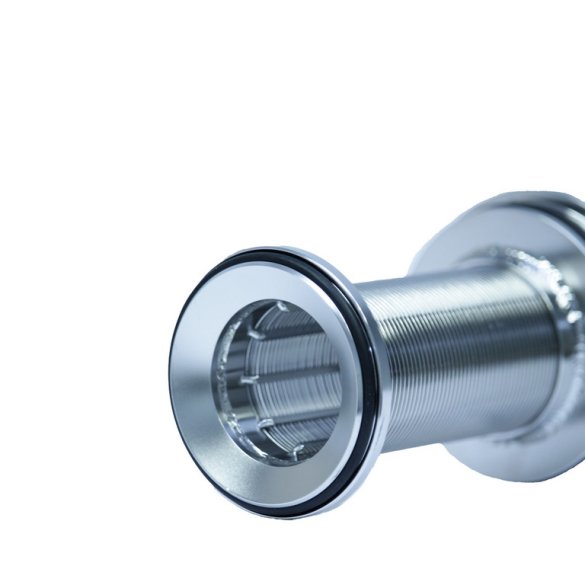

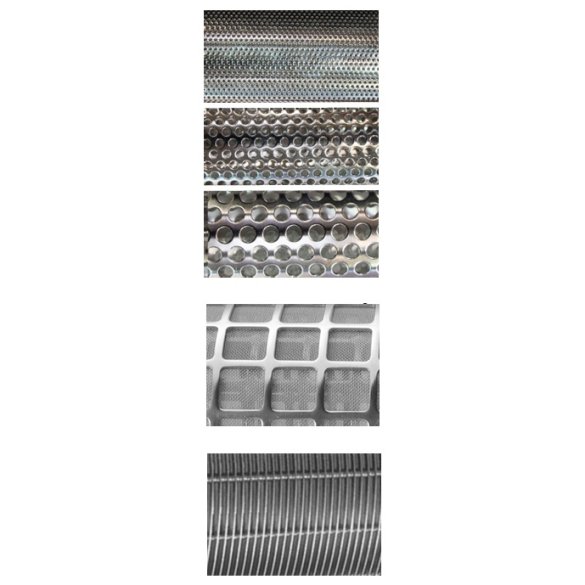

dirt collecting filters are used in process plants for the filtration of liquids in a pipeline. Unwanted particles are filtered out so that downstream components are protected. Basically, they consist of a cylindrical housing with a cylindrical strainer insert made of perforated plate, gauze or slotted tube.

The open areas of the screen inserts are dimensioned in such a way that the pressure loss is as low as possible.

Usage
Retention and removal of unwanted particles by size in pumpable media
Protection against foreign bodies in sensitive system parts, such as pumps, apparatus and valves
Ensuring the required product quality

Features

• High flow rate due to large open area

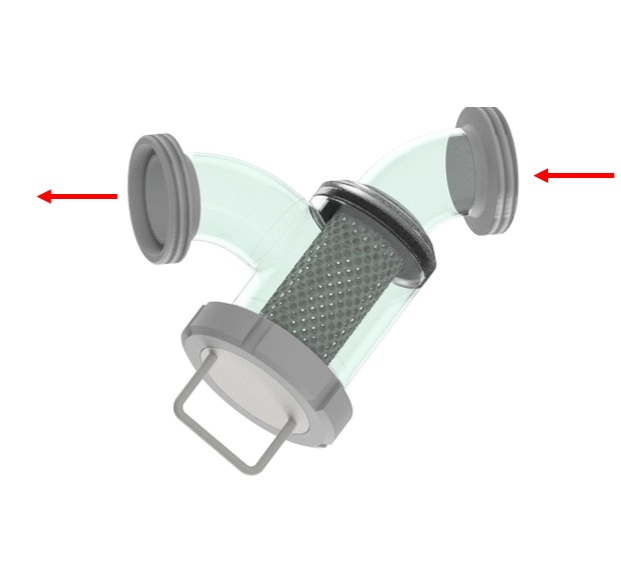

• Flow in both direction possible with perforated plate or sandwich type
• Simple assembly and handling
• Very easy to clean and sterilise
• Cleaning of strainer without removing the housing
• Sieve body with lid and support ring fully or partially welded, depending on the version
• Stable design of the strainer insert.

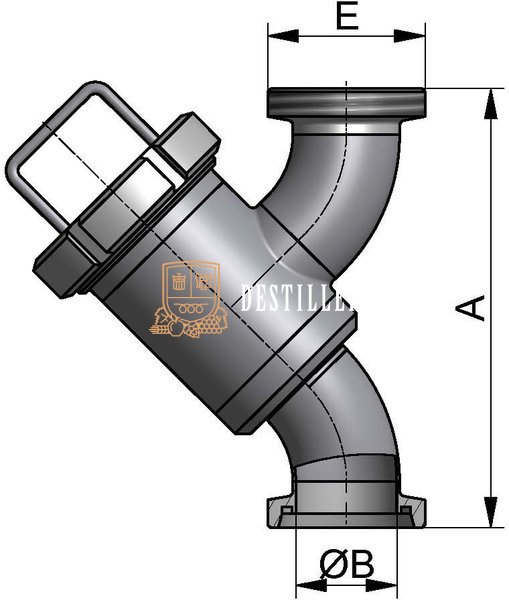

Sizes: DN 25 – 100

Materials
304/304L  1.4301/1.4307, 316L – 1.4404

Seals: EPDM, FKM, HNBR

Surfaces
Finish = polished (ground) or matt blasted.

Permissible operating pressure: 10 bar.
