Decanter demontable bend, Tri Clamp

Decanter demontable bend, Tri Clamp
Producer:
Product code: ITEM-892
Professional stainless steel decanter valve for removing wine from the sediment. The tube can be positioned to collect the wine from above the see full description
Print product specification
DESCRIPTION

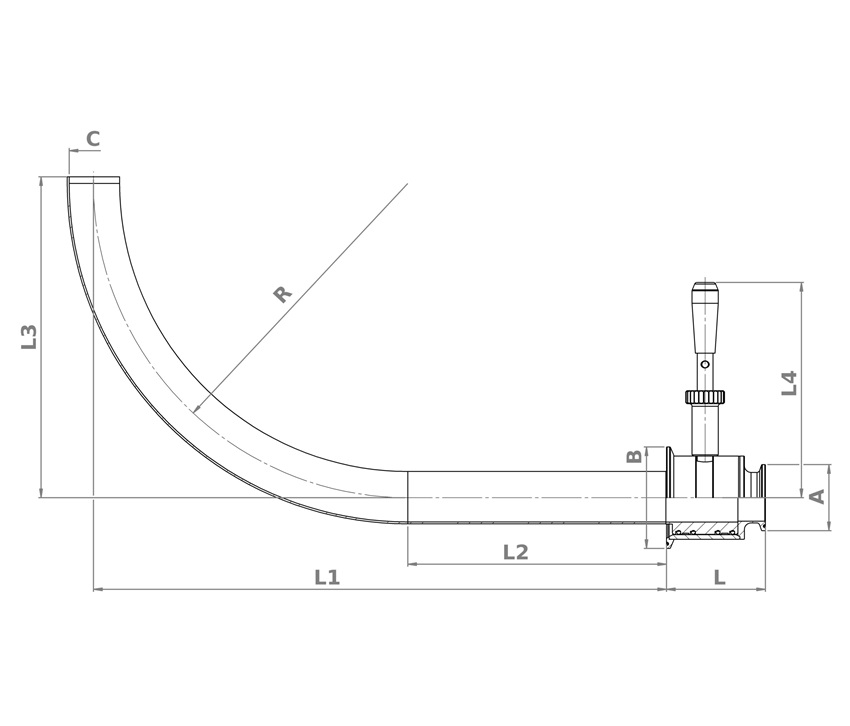

Professional stainless steel decanter valve for removing wine from the sediment. The tube can be positioned to collect the wine from above the sediment. The valve can be connected to any source that is equipped with a special ball valve or a Tri Clamp output of a typical standard, according to the table below:

SIZE A B C L L1 L2 L3 L4 R CODE
40 TC 1˛5"(∅50˛5) TC 2˛5"(∅77˛5) ∅37 75˛5 404 100 304 165 304 8926540
40 TC 2"(∅64) TC 2˛5"(∅77˛5) ∅37 75˛5 404 100 304 165 304 8926550

Tri Clamp
