Cooling unit, chiller, Ice Chilly
The compact IceChilly cooling unit, made of stainless steel, is an ideal solution for microbreweries, hobby breweries and smaller wineries that
see full description
DESCRIPTION
The compact IceChilly cooling unit, made of stainless steel, is an ideal solution for microbreweries, hobby breweries and smaller wineries that only need cooling for their applications.
IceChilly is available in three models, with cooling capacities ranging from 2.35 to 4.4 kW (3.15 to 5.90 HP). When used for flash cooling, it increases the efficiency of the device by ensuring a constant cooling temperature for a longer time.
CHARACTERISTIC
Cooling water temperature range from -6°C to +30°C
Ambient temperatures from +10°C to +32°C
Two cooling circuits for increased system safety
APPS
Passive cooling of fermentation and storage tanks
Cooling of must and wine for preliminary purification and stabilization
Cooling of rooms and warehouses - using additional fan coil units

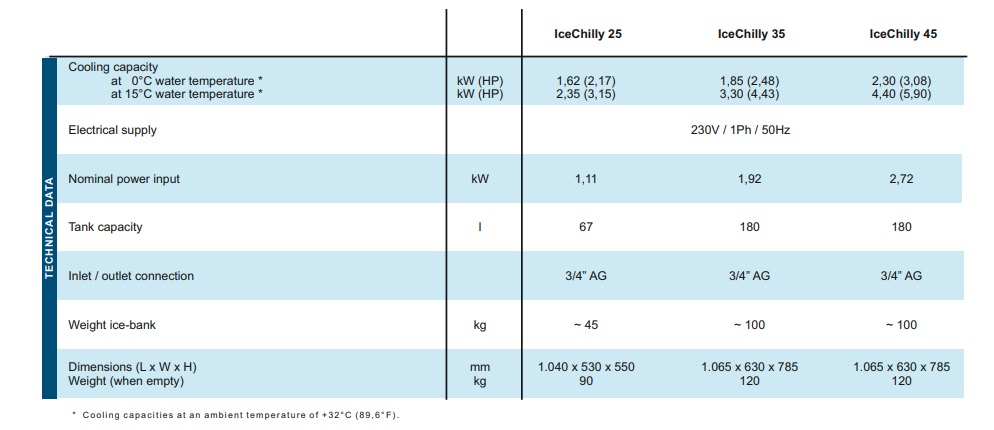

TECHNICAL DETAILS
Available in three models:
IceChilly 25 / IceChilly 35 / IceChilly 45
Cooling capacity: 2.35 - 4.4 kW (3.15 - 5.90 HP)
Refrigerant: R290
Electrical connection: 230 V/1 phase/50 Hz
Water inlet/outlet: 3/4"
