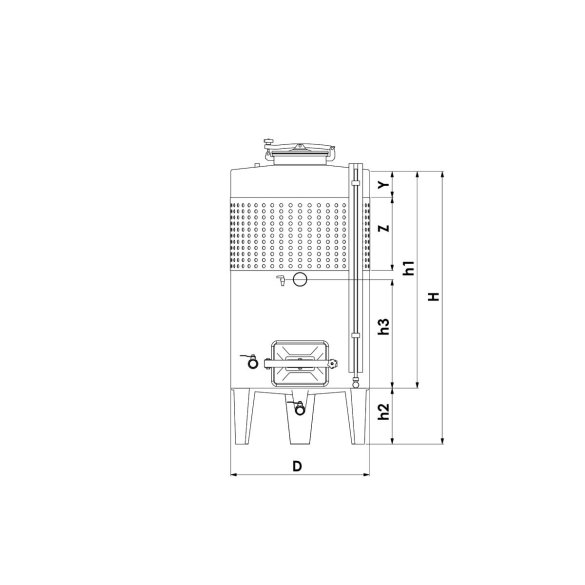

Closed mash tanks with one cooling jacket

Tanks with rectangular manway door are used for maceration and fermentation of wine or for wine storage. Rectangular door enables an easy discharge and cleaning of tank. Controlled fermentation and better regulated wine aging can be achieved by the use of cooling jackets on a tank.

Option: sloped bottom 5 % (3º).

Standard equipment

• welded legs
• cooling jacket
• 2 × fitting ½” for cooling/heating medium
• total outlet - ball valve 1" (from 300 L to 800 L) or 5/4” (from 1100 L)
• partial outlet - ball valve 1" (from 300 L to 800 L) or 5/4” (from 1100 L)
• rectangular manway door 245 × 310 mm (from 300 L to 800 L) or 420 × 310 mm (from 1100 L to 4850 L)
• manhole cover Ø385 mm
• sample tap DN15
• analog thermometer, thermowell (behind)
• level indicator Ø16 mm
• 2 × inert gas fitting ½”
• ladder support (from 1100 L)

Additional equipment

•
• valves – DN, WG, garola, TC, Macon
• lower tap ¾”
• fitting DN50 + cap/vent valve
• lifting lugs
• inox type plate
• rectangular manway door 530 × 400 mm
• adjustable feet
