DESCRIPTION

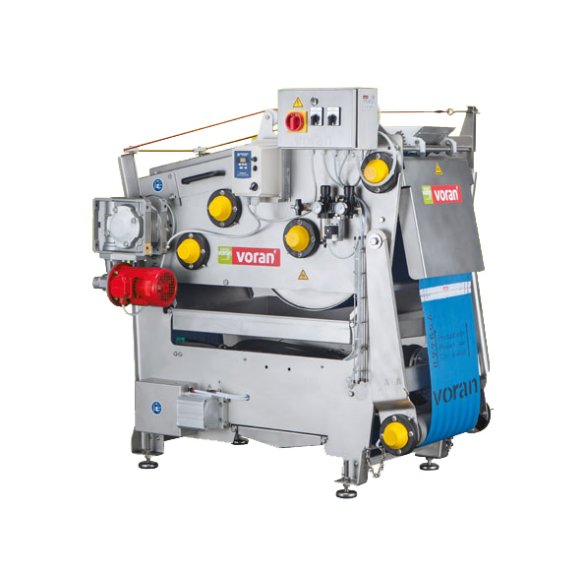

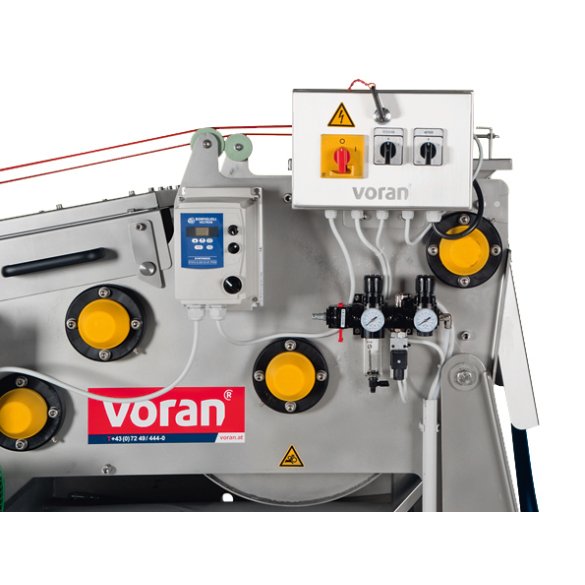

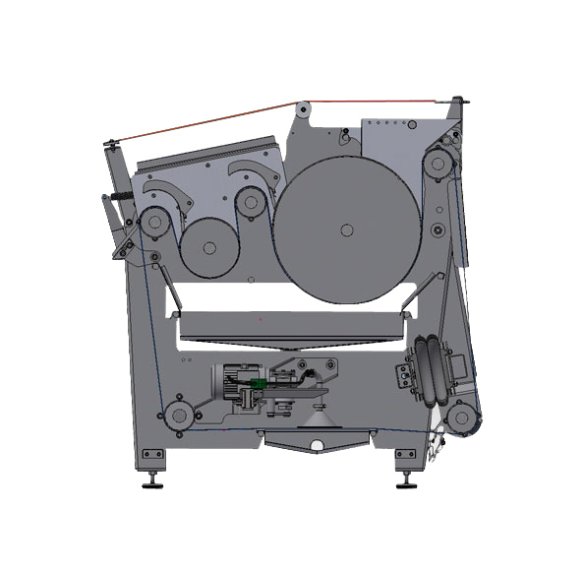

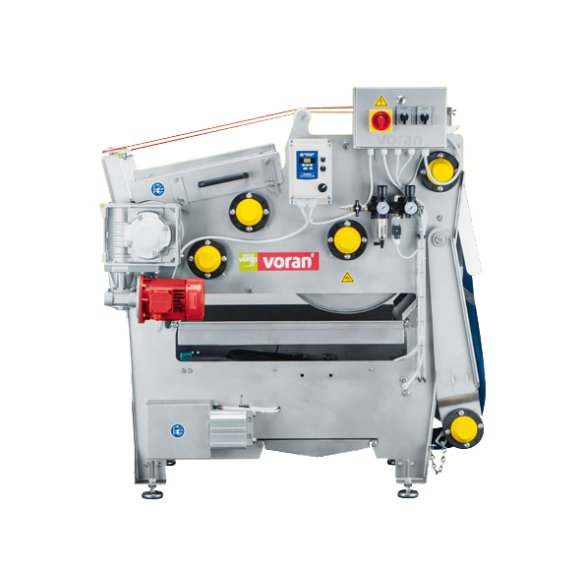

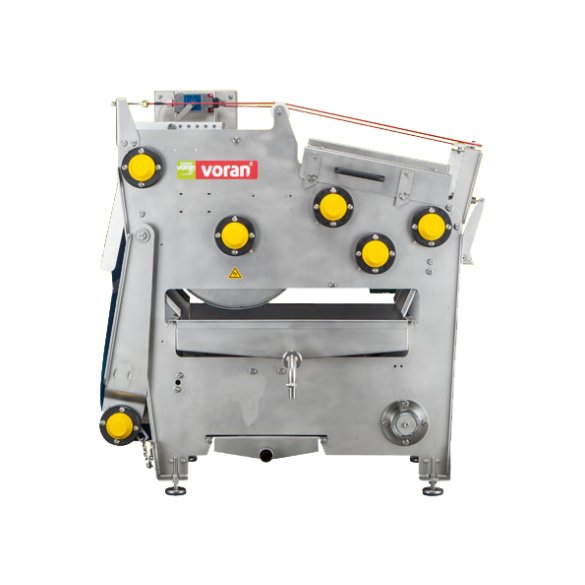

Belt press with pneumatic belt tensioner, automatic belt control and high pressure belt cleaner (high pressure cleaner required). The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper.
Processable materials
Apples, Pears, Quince, Beetroot, Carrots, Manioc, Vegetables. This represents just an example, based on different materials and a selection of fruit processed in practice.
| Technical data |
| Height pomace ejector |
775 mm |
| Height waste water drain |
120 mm |
| Height juice outlet |
485 mm |
| Connection for juice outlet |
1 |
| Connection for waste water |
ø 48,3 mm |
| Water consumption for cleaning |
2 l/min |
| Contact time |
1 min |
| Belt speed |
2 m/min |
| Juice yield |
70 % |
| Material |
1.4301 / AISI 304 |
| Weight |
355 kg |
| Conveyor width |
240 mm |
| Strip length |
4 900 mm |
| Belt width |
350 mm |
| Discharge height |
1 350 mm |
| Height |
1 350 mm |
| Width |
970 mm |
| Length |
1 290 mm |
| Electrical protection |
16 A |
| Connected load |
400V 50Hz (dreiphasig) |
| Motor rating |
Antriebsmotor 0,37 (0,5) Reinigungsmotor 0,12 (0,16) kW (PS) |
| Nominal rating kg/h |
300 kg/h |
