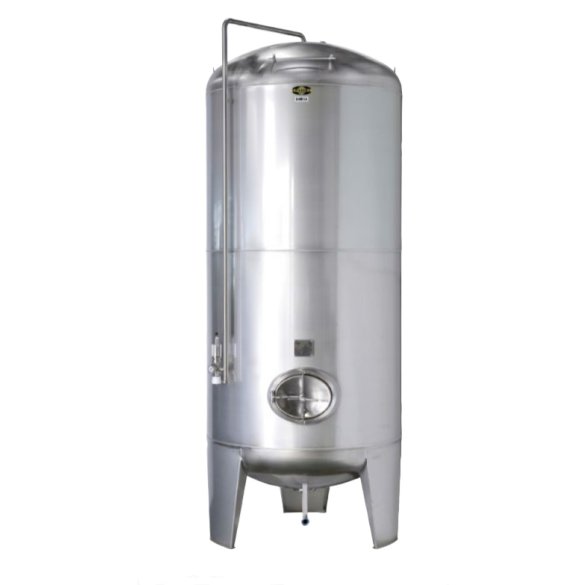

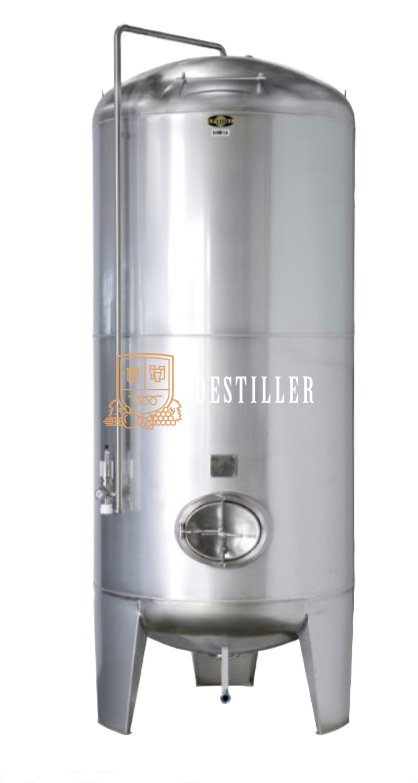

Beer and beverage tank FS-MO-3B with double jacket

Producer: SPEIDEL

Product code: FS-MO-3B

Made of stainless steel for pressure use up to max. 3.0 bar, completely equipped with: Safety valve for 3.0 bar working pressure Up to 120 see full description

This item is not available in our online store. In order to receive a non-binding quote, we encourage you to submit an inquiry using the "Ask about the product" button. In case of additional questions, we will contact you to arrange the details.

Print product specification

Full description

DESCRIPTION

Made of stainless steel for pressure use up to max. 3.0 bar, completely equipped with:

Safety valve for 3.0 bar working pressure
Up to 120 liter with clamp fastener NW 150, from 240 liter filling dome NW 400 with hinged lid
Type plate
Laser welded double jackets for cooling with two connections G1“ (male thread)
Cleaning pipe DN 40, with spray head, perforation 360° with spray head holder,
including cleaning pipe NW 40 DIN 11851 incl. disk valve NW 40
CO2 -Connection G¾“ welded on to cleaning pipe, incl. CO2 -valve
Bung pressure stat (Pico) G¾“
Weld on gland NW 100 located in the tank top in a forward position with sealing cap
Manhole Zimmerlin 340 x 440 mm LW, door with swiveling handle and toggle nut
Welded gland NW 10 DIN 11851 incl. sampling valve NW 10
Welded gland NW 10 DIN 11851 incl. welded sleeve and thermometer L 125 mm
Racking outlet NW 40 DIN 11851 incl. disk valve NW 40
Bottom outlet NW 40 DIN 11851 incl. disk valve NW 40
On welded-on box legs incl. height adjustments

Tank with declaration of conformity according to pressure equipment directive 2014/68/EU.

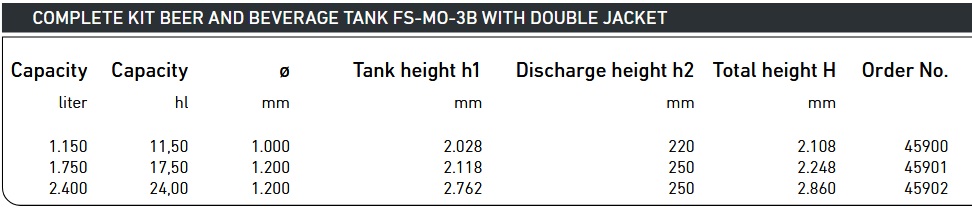

Tab_speidel
