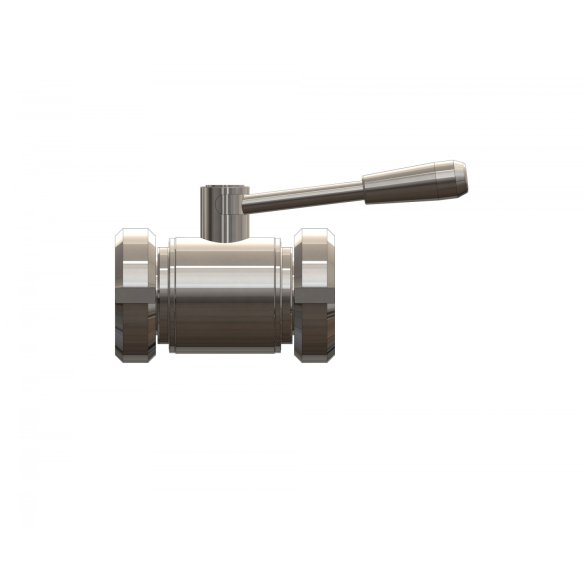

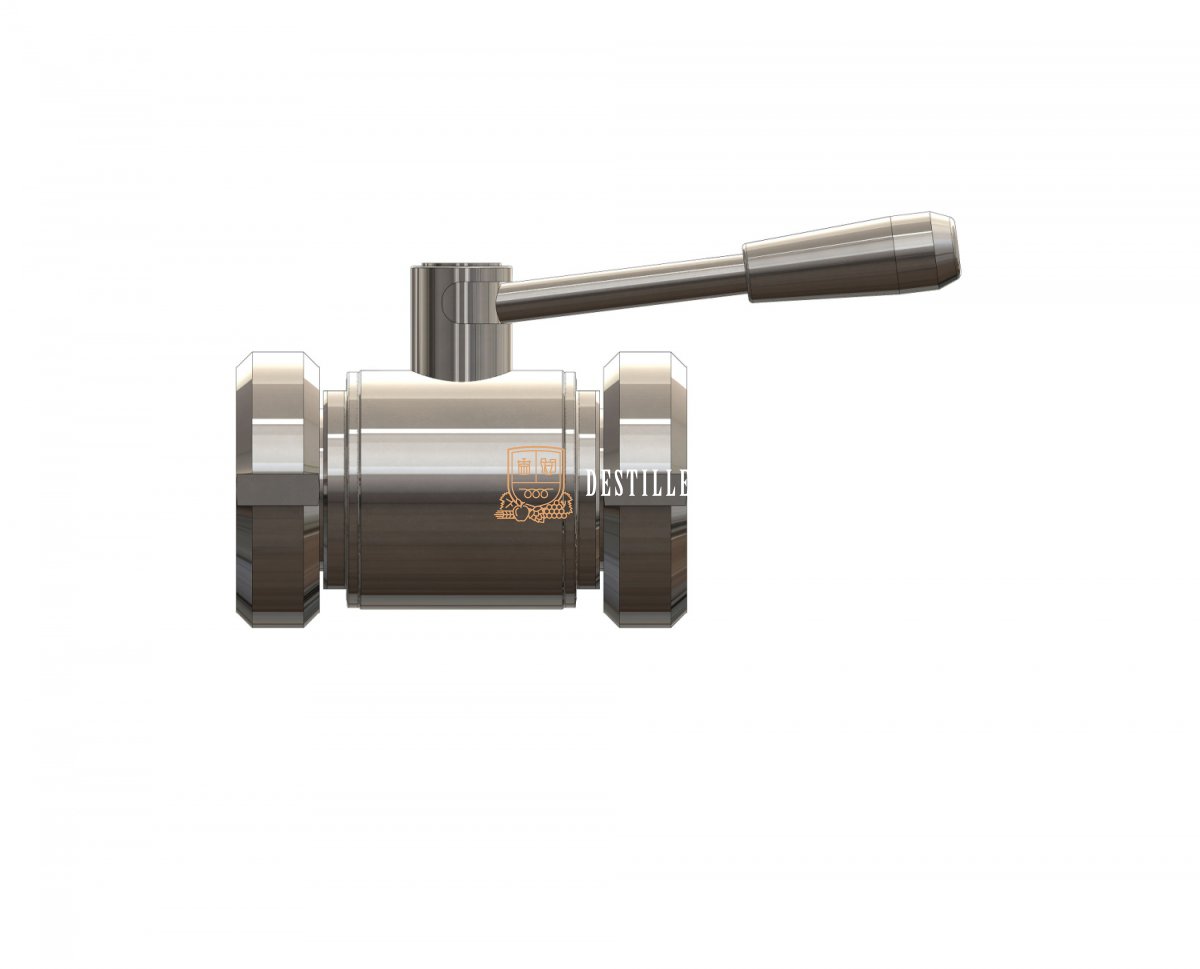

Ball valve, nut DIN DN – nut DIN DN
DESCRIPTION

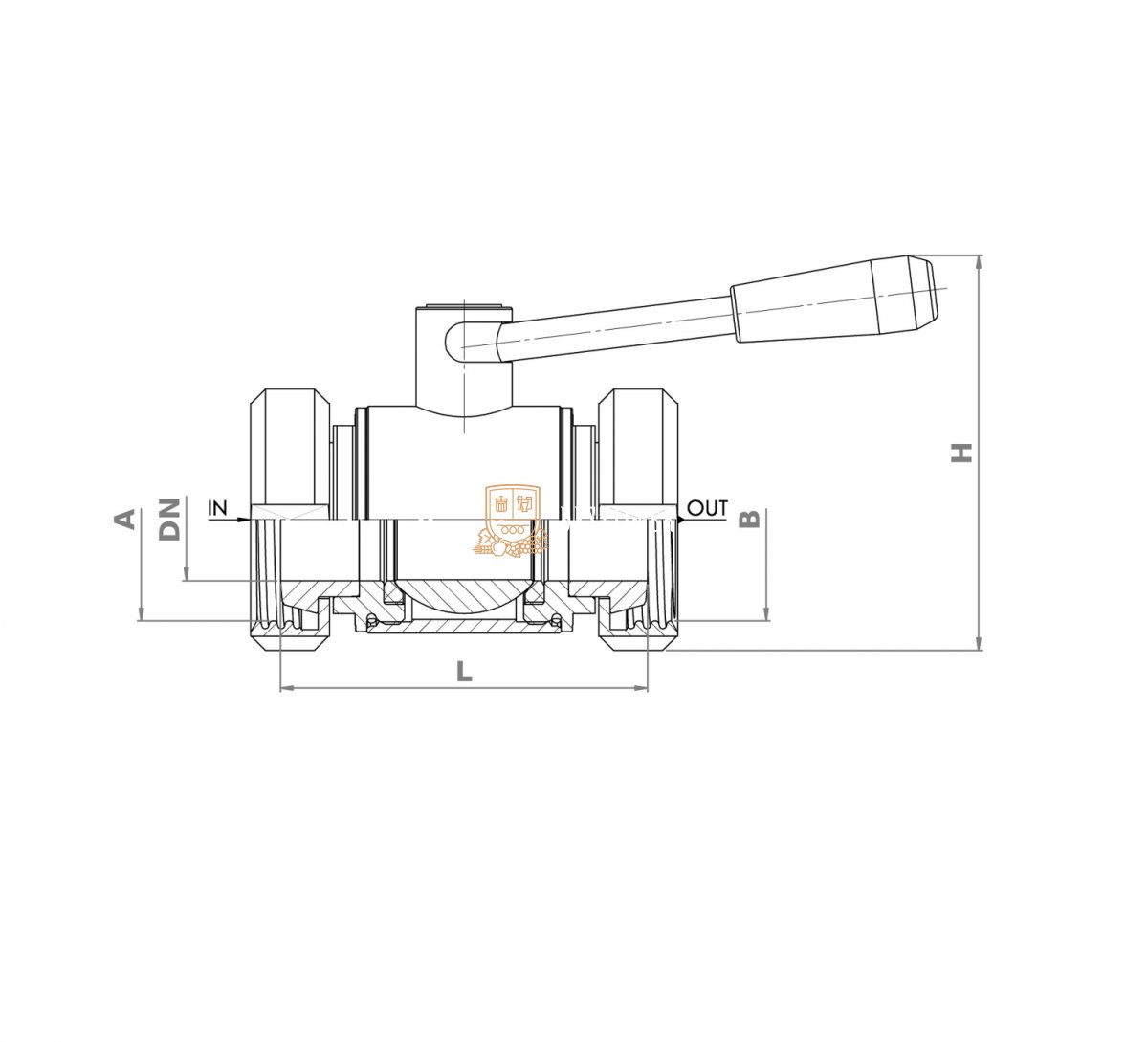

| DN | A | B | C | L | H | CODE |
|---|---|---|---|---|---|---|
| 32 | DIN DN32 | DIN DN32 | ∅32 | 98 | 105 | 8233232 |
| 40 | DIN DN40 | DIN DN40 | ∅40 | 98 | 110 | 8234040 |
