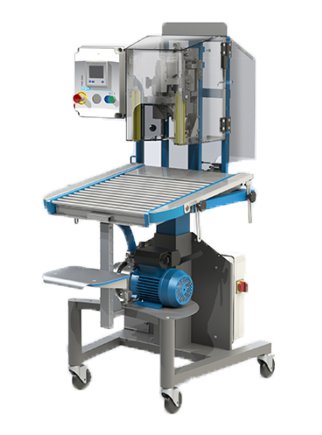

Bag in box, pouch filler, MBF 3000 Premia
Producer: Technibag
Manual Bag in Box filling system for hot filling of fruit and vegetable juice and cold-filling wine in 3, 5, 10 and 20 l standard Bags and 1,5 -
see full description
DESCRIPTION
Manual Bag in Box filling system for hot filling of fruit and vegetable juice and cold-filling wine in 3, 5, 10 and 20 l standard Bags and 1,5 - 5l Pouch-bags. A feed line buffer vessel is needed for hot filling. Automated Nitrogen injection at end of filling cycle.
| Technical data | |
|---|---|
| Scope of supply | cleaning adapter |
| Compressed air connection | 6 bar |
| Filling accuracy | ± 0,5 % |
| Material | 1.4301 / AISI 304 |
| Weight | 80 kg |
| Height | 1 770 mm |
| Width | 850 mm |
| Length | 740 mm |
| Electrical protection | 16 A |
| Connected load | 400V 50Hz (3-phases) |
| Electrical power | 1 kW |
| Nominal rating l/h | 2950 (with 10l Bags) l/h |
