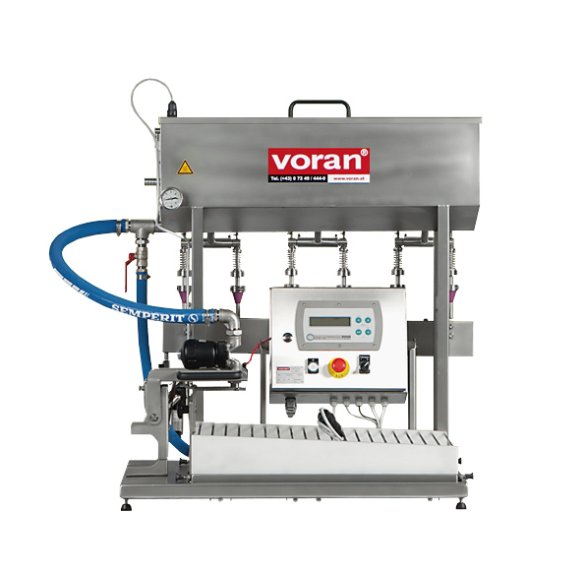

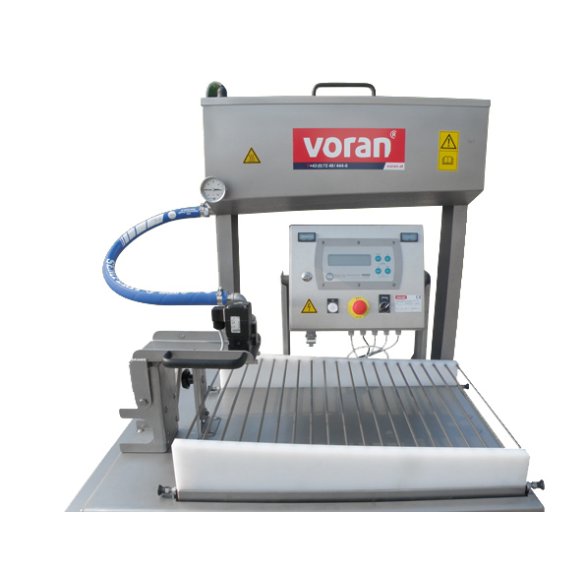

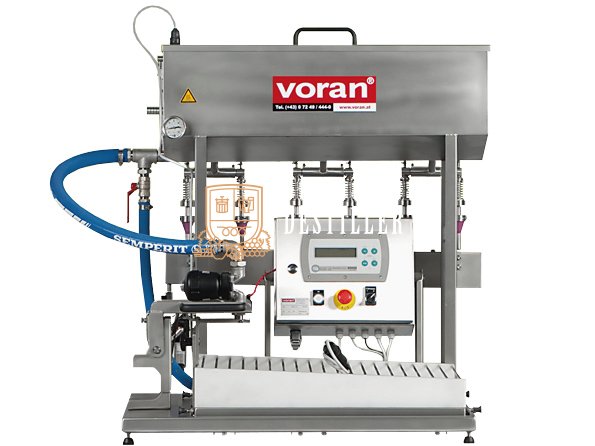

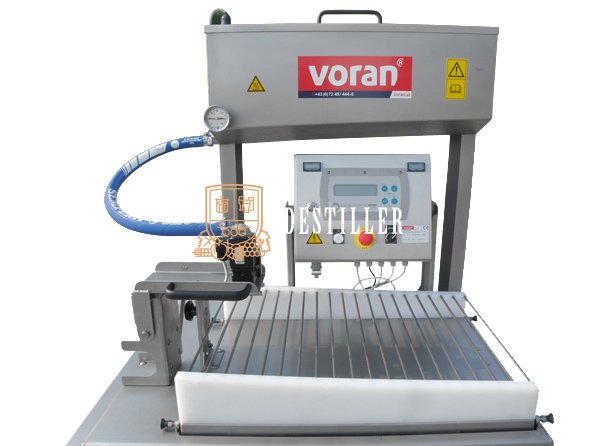

Manual Bag in Box and glass bottle filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard
see full description
Manual Bag in Box and glass bottle filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags.
Technical data
Scope of supply
Reinigungsadapter

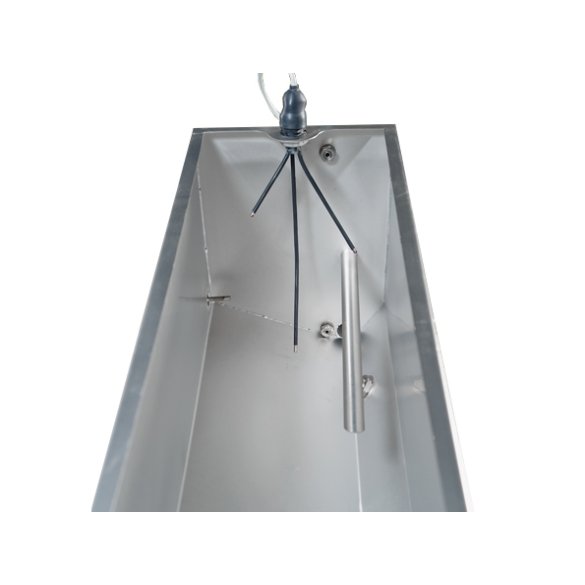

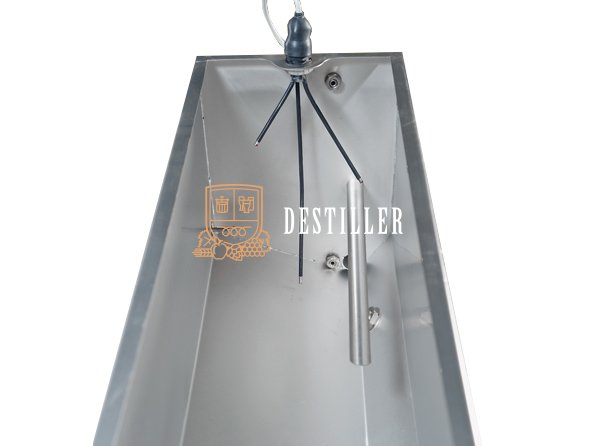

Juice vessel
54 l
Connection for juice inlet
ø 19 mm
Compressed air connection
6 bar
Filling accuracy
± 0,5 %
Material
1.4301 / AISI 304
Weight
85 kg
Height
1 075 mm
Width
790 mm
Length
1 280 mm
Electrical protection
16 A
Connected load
230V 50Hz (einphasig)
Nominal rating l/h
750 (bei 10l Bags) l/h
